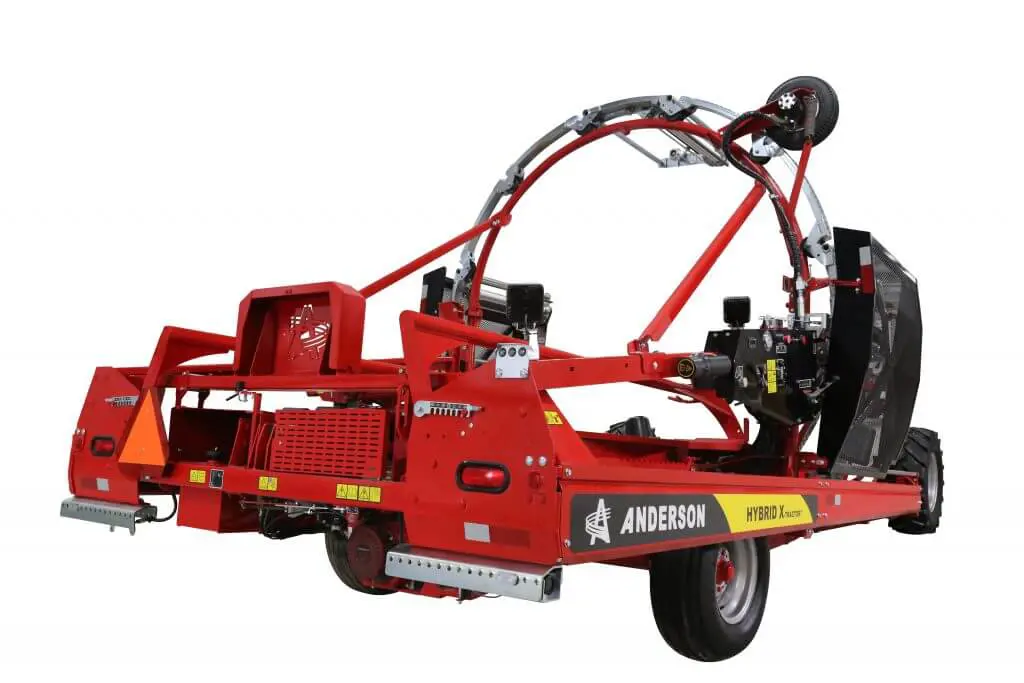

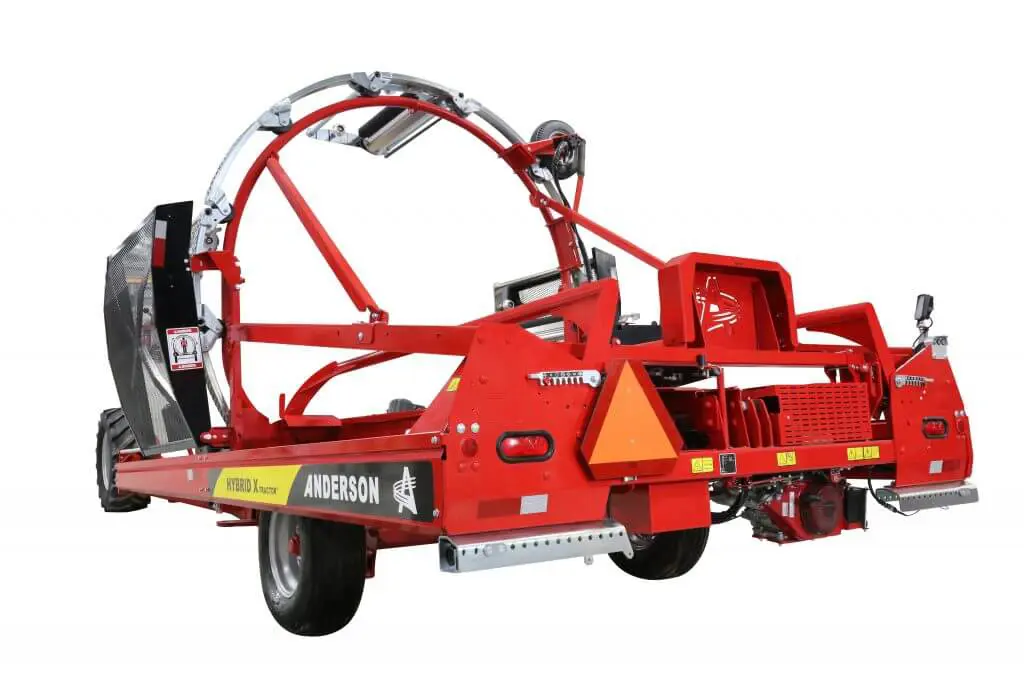

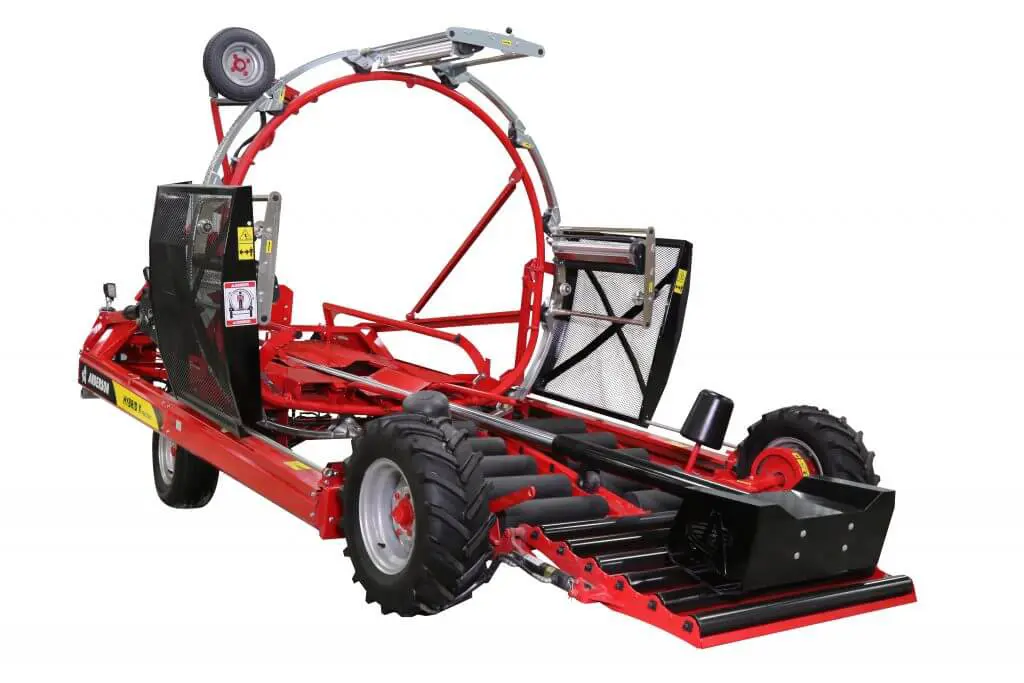

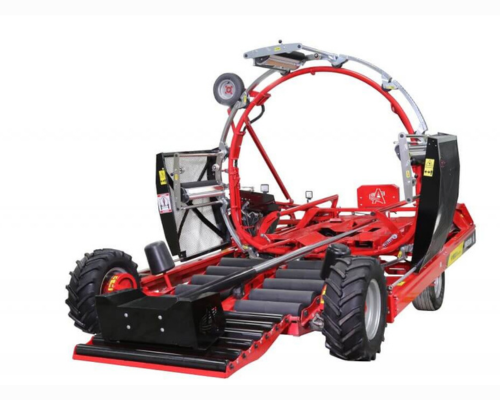

Anderson HybridX

Key Features

• XTRACTOR™ push-off – Final bale ejection with lever pull

• 4 aluminum stretchers – 30 in (750 mm) each

• Quick bed conversion – Switch between V-shaped and flat bed for round or square bales

• Autopilot steering – Tracks bale row for precise alignment and storage space efficiency

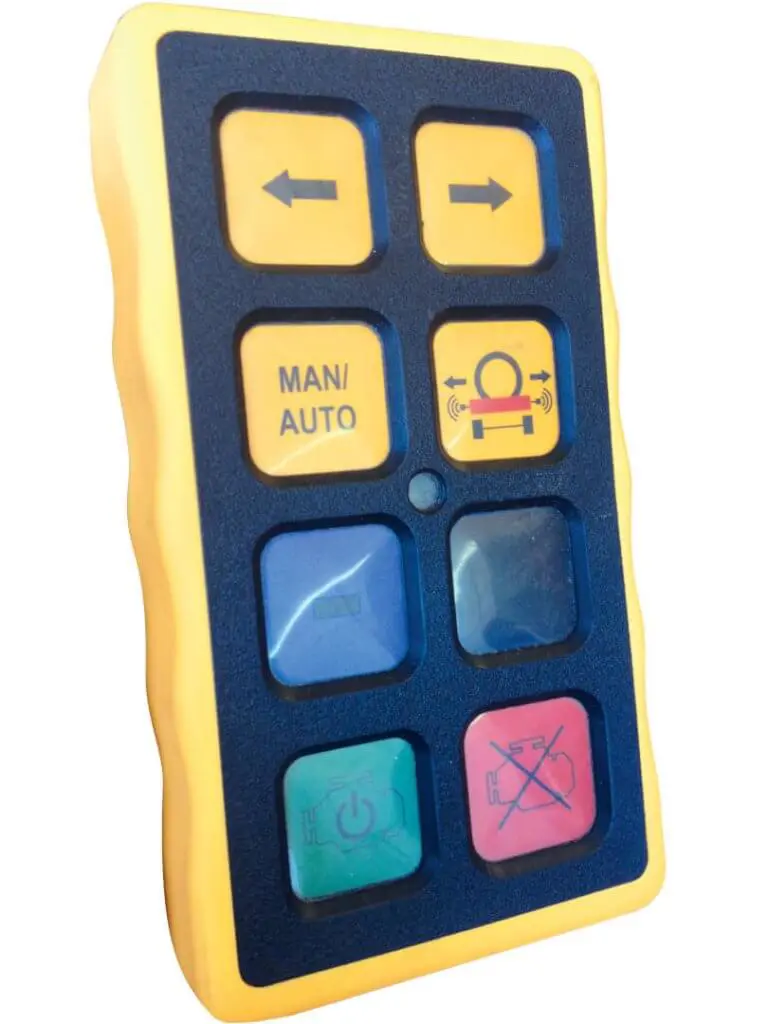

• Remote control – Start, steer, and stop wrapper from tractor

• Large fuel tank – 25L (6.6 gal.) capacity, wraps 5x more bales per fill

• Film Watch sensor – Auto shutdown on film break or empty

• Bale guide rollers – Keep bale centered, even on slopes

• Hydraulic lifting axles – Overcome rough terrain or obstacles

• Engine power – 20 HP standard engine

Specifications

• Bale Types

  • Round: Up to 6 ft diameter, 5 ft long

  • Square: 3x3 ft or 4x3 ft, up to 6 ft long

• Wrapping speed: Up to 180 bales/hour

• Film stretchers: 4 x 30 in (750 mm) aluminum

• Engine: 13 HP Honda (20 HP optional)

• Bale push-off: XTRACTOR™ auto system

• Bed shape: Flat or V-shaped

• Bale guides: Adjustable with 2 guide rollers

• Leveling: Hydraulic lifting axle

• Lights: Standard road lights

• Hoop speed: Adjustable flow control

• Tires:

  • Traction: 29 x 12.5-15

  • Rear: 11L-15

• Tail gate: Hydraulic, standard

• Auto-locking wheels: Standard

• Hydraulic compaction: Adjustable, standard

• Smart start: Included

Dimensions

• Overall width: 9 ft 8 in (2.95 m)

• Transport width: 8 ft 5 in (2.56 m)

• Overall height: 9 ft 4 in (2.87 m)

• Length: 18 ft 9 in (5.74 m)

• Transport length: 16 ft 9 in (5.12 m)

• Weight: 5511 lb (2500 kg)

• Tow bar weight: 903 lb (410 kg)
