Bradco 105064
The Bradco Vibratory Roller with Smooth Drum is a skid steer attachment designed for compacting soil, stone, base material, and prepared surfaces. It is available in 36", 48", 66", 73", and 84" drum widths, with up to 9,370 lbs. of dynamic force, 2,600 vpm vibrating speed, and 15-degree drum oscillation. Built for paving prep, hardscape base work, finish grading, turf construction, and rental fleets, it helps create smooth, stable, and properly compacted surfaces.
Ask a Question
Bradco Compaction Attachment

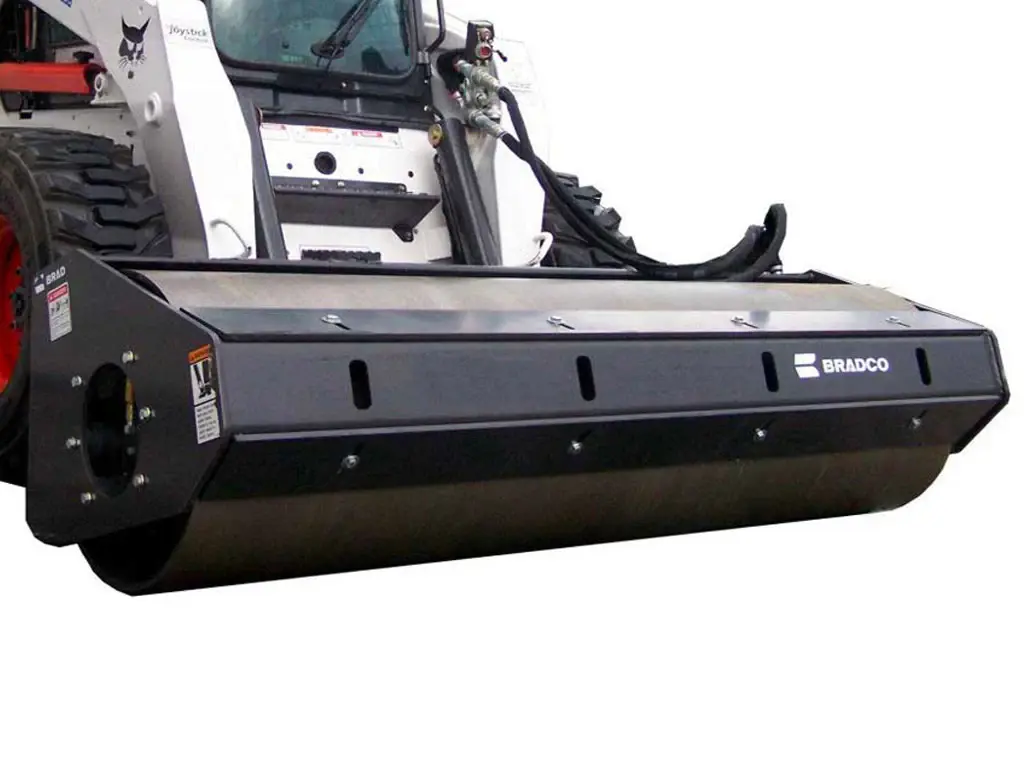

Bradco Vibratory Roller With Smooth Drum
The Bradco Vibratory Roller with Smooth Drum is a skid steer attachment designed for professional compaction, finish grading, turf construction, paving prep, and hardscape base work. Built with multiple drum width options, strong dynamic force, and smooth-drum compaction performance, it helps contractors prepare clean, level, and stable surfaces efficiently.
Built For Surface Compaction
- Available smooth drum widths from 36" to 84"
- Designed for skid steer loaders
- Dynamic force up to 9,370 lbs.
- Vibrating speed up to 2,600 vpm
- Ideal for finish grade, paving prep, turf, and hardscape work
Product Features
A jobsite-ready smooth drum roller attachment for compacting soil, stone, base material, and prepared surfaces.
Smooth Drum Finish
- Creates clean, flat compacted surfaces
- Well suited for finish grading and base preparation
- Helps prepare surfaces before asphalt, concrete, or pavers
Multiple Drum Widths
- Available in 36", 48", 66", 73", and 84" smooth drum models
- Match drum width to skid steer size and jobsite needs
- Useful for tight work areas or wider production jobs
High Compaction Force
- Dynamic force ranges from 2,488 lbs. to 9,370 lbs.
- Helps compact base material efficiently
- Supports demanding construction and land management jobs
Hydraulic Operation
- Powered by skid steer hydraulics
- Simple attachment workflow for compacting with existing equipment
- Helps reduce need for separate dedicated compaction machines
Drum Oscillation
- 15-degree drum oscillation/tilt
- Helps maintain contact across uneven terrain
- Improves compaction consistency on prepared surfaces
Rental & Contractor Ready
- Excellent attachment for rental fleets
- Valuable for contractors preparing sub-base work
- Useful across construction, turf, and hardscape applications
Improvements For Compaction Work
- Better surface finish: the smooth drum helps compact material while leaving a clean, even surface.
- Improved productivity: wide drum options let operators cover more ground per pass on larger jobs.
- More stable base prep: vibratory force helps consolidate soil, stone, and sub-base material before paving or hardscaping.
- Greater jobsite flexibility: multiple widths make it easier to match the attachment to tight spaces or open areas.
- Lower equipment complexity: skid steer mounting lets crews compact with a machine already used on the jobsite.
Key Specs
- Model: Bradco Vibratory Roller with Smooth Drum
- Carrier type: Skid steer loader
- Smooth drum widths: 36", 48", 66", 73", and 84"
- Drum diameter: 20" on 36" model; 24" on larger models
- Operating weight range: 840 to 2,530 lbs.
- Dynamic force range: 2,488 to 9,370 lbs.
- Vibrating speed: 2,000 to 2,600 vpm
- Drum oscillation/tilt: 15 degrees
Application & Use In The Field
A practical attachment for contractors, rental yards, landscapers, turf crews, and site-prep professionals.
Paving Preparation
- Compact sub-base before asphalt or concrete work
- Prepare driveways, parking areas, and access roads
- Help create a stable foundation before final surfacing
Hardscape Base Work
- Compact base material for patios, walkways, and retaining walls
- Support stone, gravel, and aggregate preparation
- Improve base stability before paver installation
Finish Grade Work
- Compact and smooth prepared soil surfaces
- Use after grading to help firm the final layer
- Support clean site finishes before landscaping or construction
Turf Construction
- Prepare sport turf and landscape bases
- Compact fill and leveling material before turf installation
- Support grounds crews and turf contractors on new builds
Smooth, Stable Compaction From A Skid Steer Attachment
The Bradco Vibratory Roller with Smooth Drum gives operators a powerful, versatile way to compact and finish soil, stone, and base material for construction, hardscape, paving, and turf projects.
