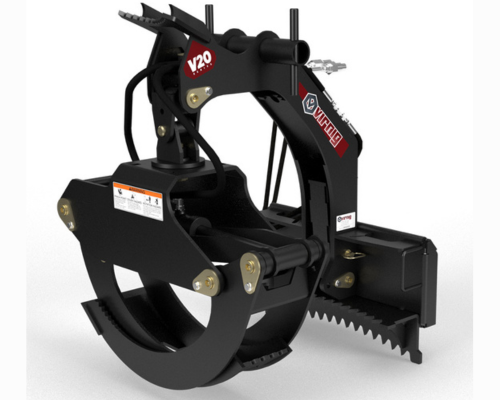

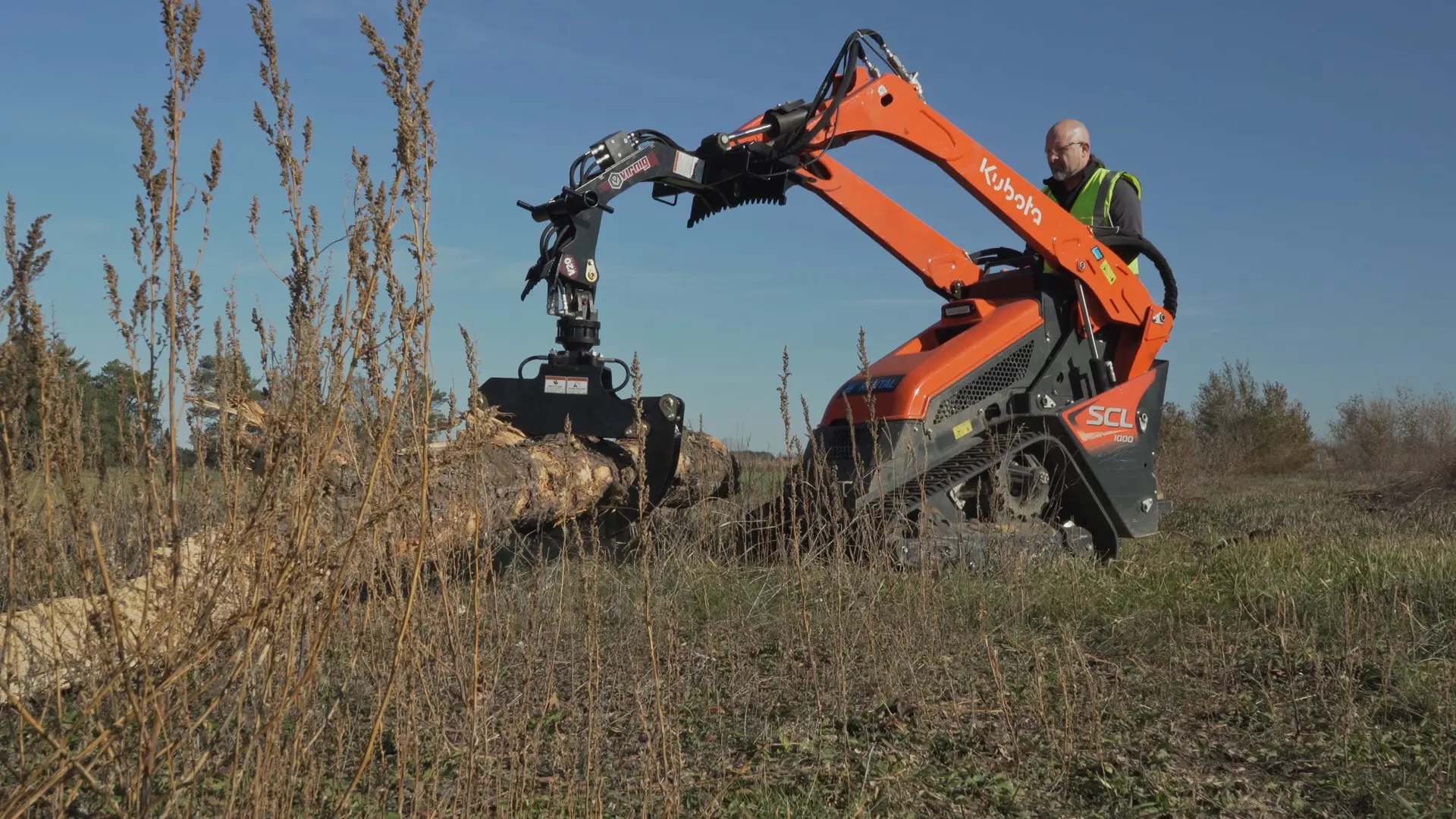

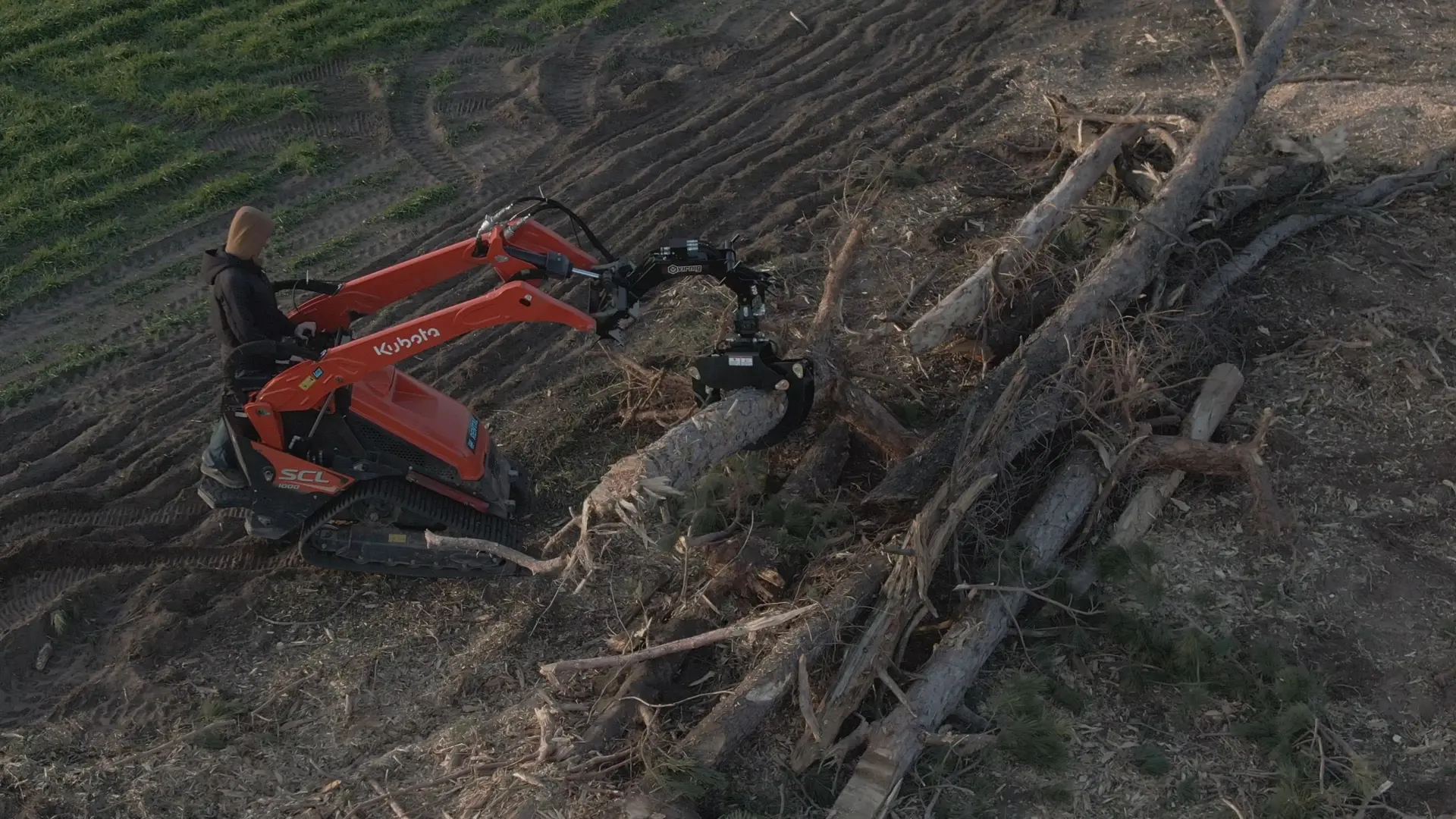

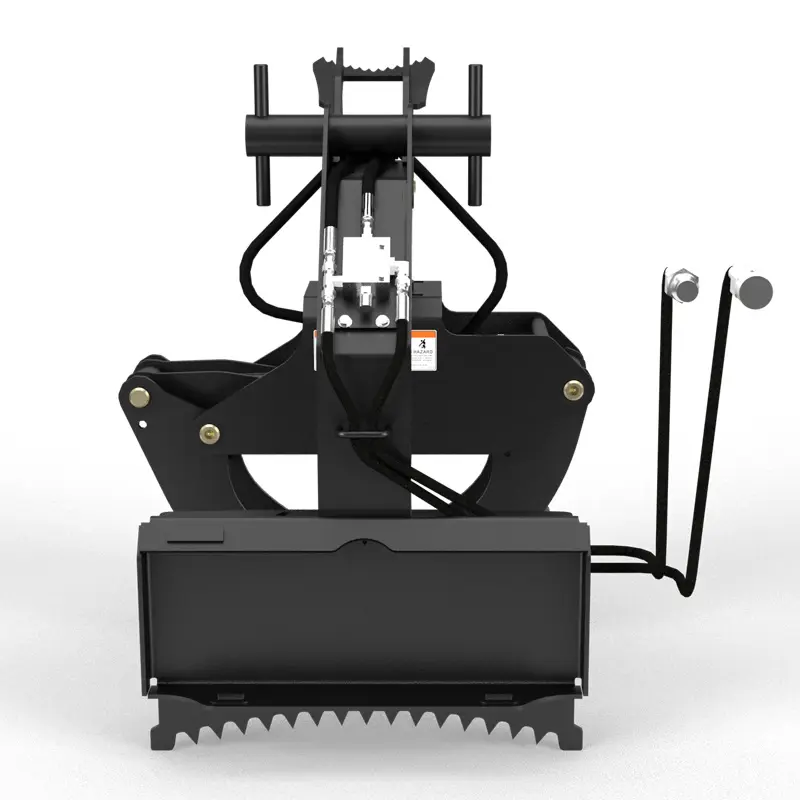

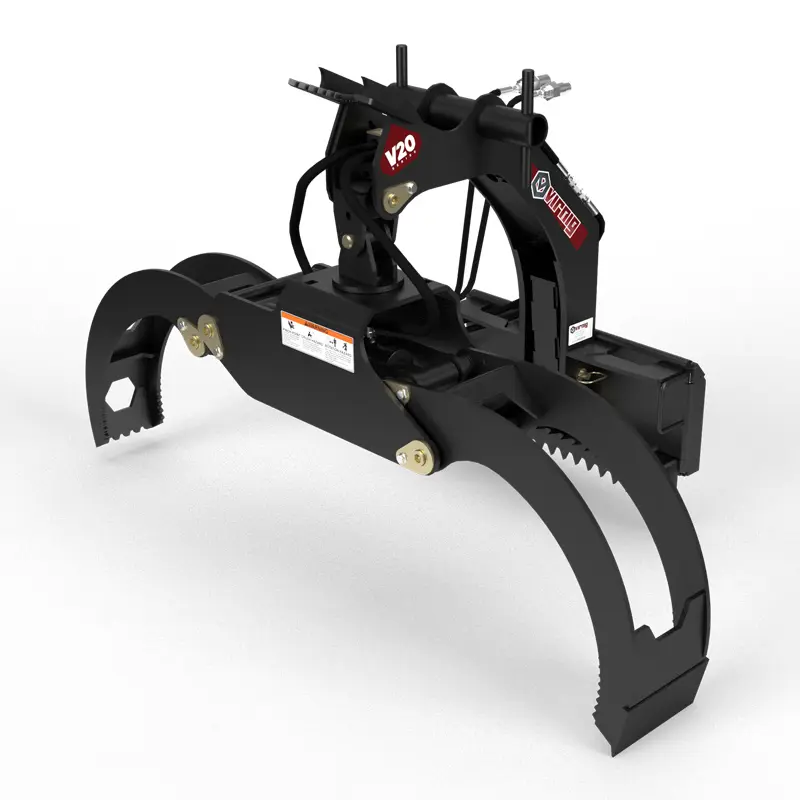

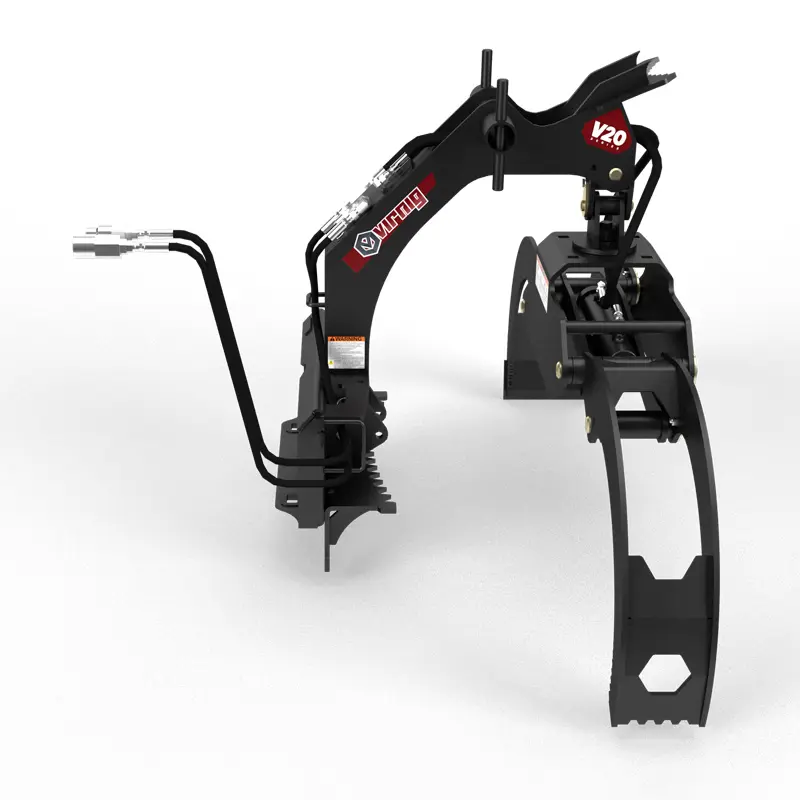

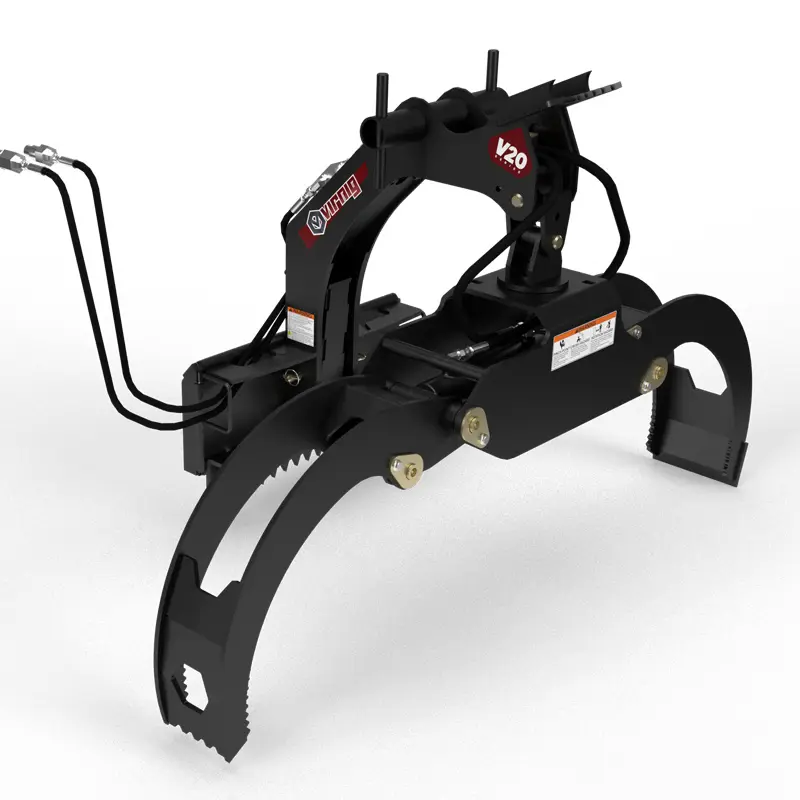

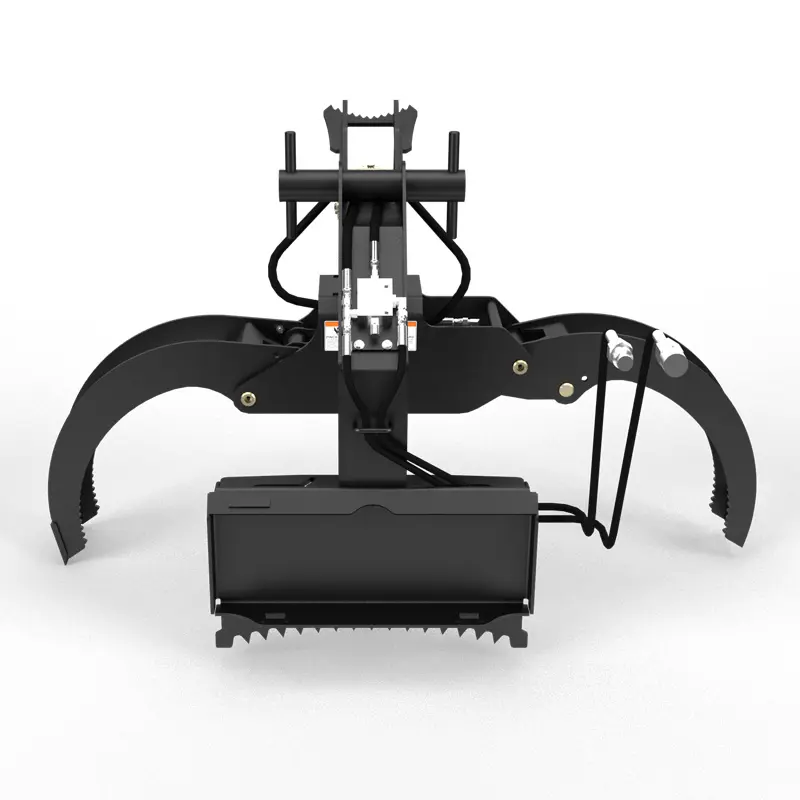

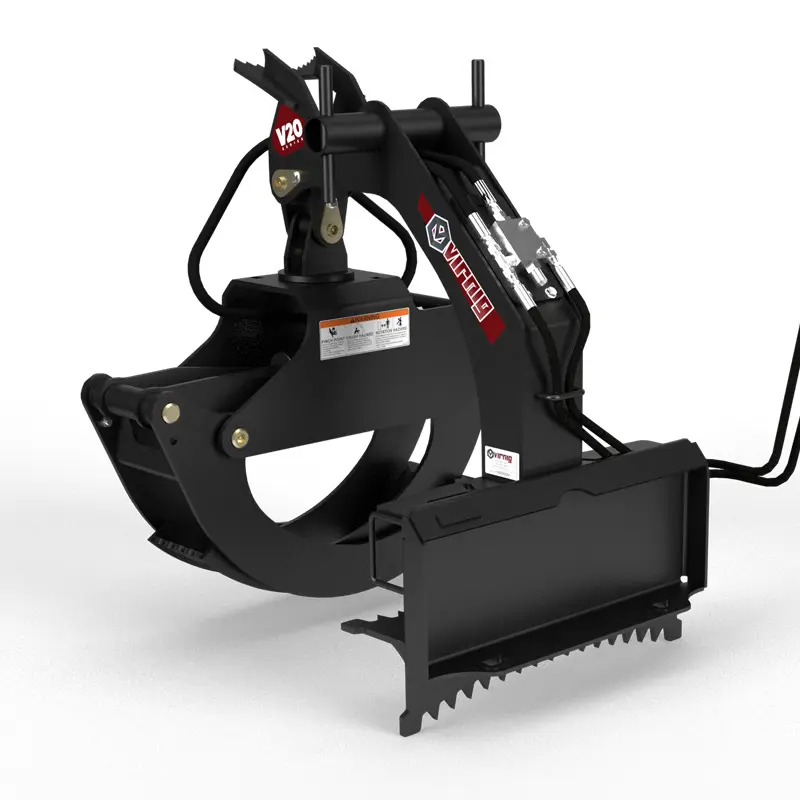

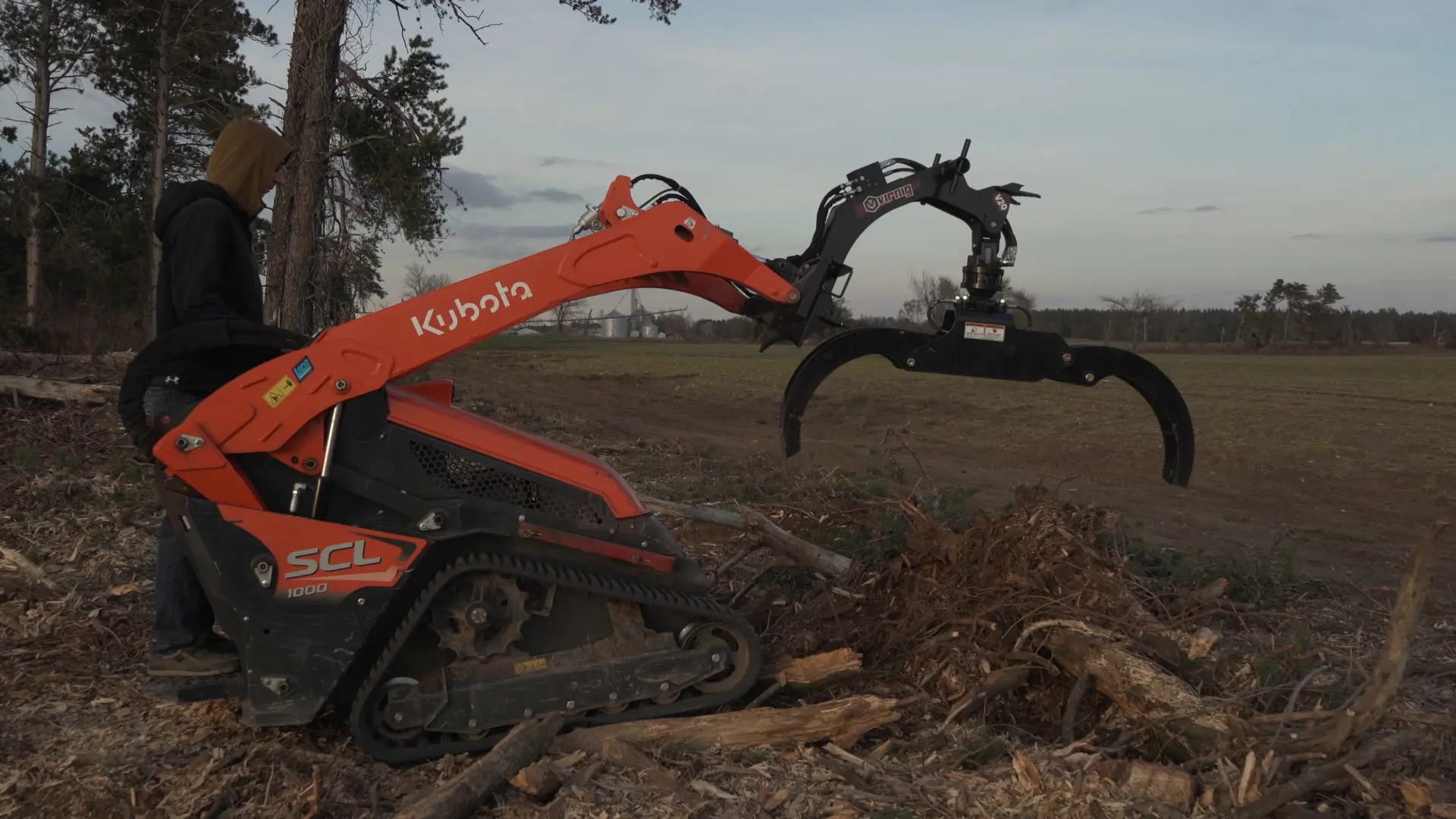

The Virnig CLG v20 Mini Skid Steer Rotating Log Grapple is built for precision and strength, designed to grab, lift, and place logs, rocks, and brush with ease. Its powerful jaws open to 60" and bypass each other to securely grasp even smaller logs. Made with AR400 steel and serrated tips, the tines provide superior grip and durability. A holding valve keeps the jaws from drifting open during use, and a serrated cradle secures logs in both vertical and horizontal positions. Standard features include a push bar, rope tie-off points, and a trailer receiver hitch (not compatible with hydraulic rotation). The grapple offers 270° manual rotation, with an optional upgrade to 360° hydraulic rotation. Optimized hose routing and recessed grease zerks help protect critical components from damage.
-
Model: CLG
-
Overall Width (Jaw Closed): 29.4"
-
Overall Height: 37.4" (Manual Rotate), 41.8" (Hydraulic Rotate)
-
Overall Depth: 31.1"
-
Jaw Tine Thickness: 0.375"
-
Cylinder Bore / Stroke: 2.0" / 8.375"
-
Cylinder Pin Diameter: 1.25"
-
Hinge Pin Diameter: 1.0"
-
Grapple Jaw Opening: 60.0"
-
Minimum Closing Diameter: 7.0"
-
Hydraulic Rotator Capacity: 6750 lbs (Static), 3375 lbs (Dynamic)
-
Approximate Weight: 300 lbs (Manual), 350 lbs (Hydraulic)
-
Recommended Loader Capacity: Less than 1650 lbs
