Virnig SGV72-CT

The Virnig SGV Series V30 Compact Tractor Skeleton Grapple is a two-cylinder independent grapple designed for hauling brush and logs. Its open-sided design allows for easy access, and the open bottom allows dirt to fall through. Each tine is made from one piece for maximum rigidity, and it features NitroSteel® cylinder rods and Teflon® coated bushings on the hinge. Optional cylinder guards are also available. This grapple is suitable for use with compact tractors.
Get a Quote
Ask a Question

Series Models

SGV72-CT

74.1" | (12) Grade 50 Steel Tines, 2 Independent Cylinders w/ Guards, 74.1" W x 22.9" H x 29" D, 350 lbs.

Series Models

SGV72-CT

74.1" | (12) Grade 50 Steel Tines, 2 Independent Cylinders w/ Guards, 74.1" W x 22.9" H x 29" D, 350 lbs.

Virnig V30 Series

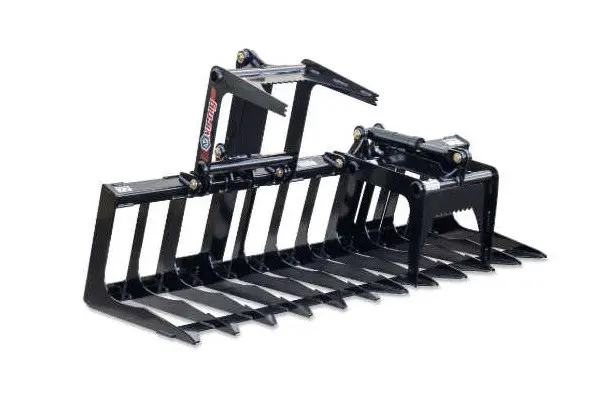

SGV72-CT Skeleton Grapple

The Virnig SGV72-CT Skeleton Grapple is built for compact tractor owners who need a light but capable grapple for hauling brush, logs, and bulky debris. Its open-sided, open-bottom design helps dirt fall through while the two-cylinder independent grapple design gives operators better control when handling uneven loads.

Overall Width

74.1"

Jaw Opening

28.7"

Approximate Weight

350 lbs

Key Features

  • Two-cylinder independent grapple design helps handle brush, logs, and uneven loads with better control
  • Open-sided design improves visibility and handling of bulky material
  • Open bottom allows dirt and loose material to fall through during cleanup
  • Every tine is made from one piece for maximum rigidity
  • NitroSteel cylinder rods and Teflon-coated bushings on the hinge help support long service life

Specifications

  • Mount: Universal Skid Steer
  • Recommended Loader Capacity: Less than 1,500 lbs
  • Height: 22.9" overall / 19.0" bucket
  • Depth: 29.0" overall / 23.5" inside
  • Number of Tines: 12
  • Space Between Tines: 6.4"
  • Tine Thickness: 0.25"
  • Side Plate Thickness: 0.375"
  • Cylinder Bore / Stroke: 2.0" / 6.0"
  • Cylinder Pins / Hinge Pins: 1.0"

Why Customers Choose the SGV72-CT

For compact tractor owners who need the widest working footprint in the series for logs, brush, and debris cleanup, the SGV72-CT offers a practical balance of visibility, control, and manageable weight. Its open-bottom skeleton design helps reduce carried dirt while the independent grapple arms make it easier to clamp uneven material during property maintenance and cleanup work.
