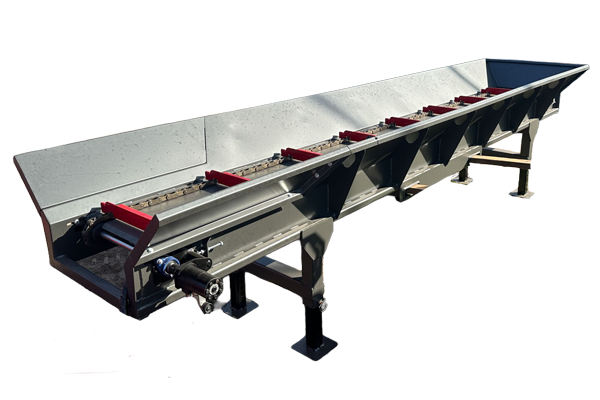

Wolfe Ridge Infeed Conveyor Hopper
Streamline your firewood production with the Wolfe Ridge IC-16 Infeed Conveyor Hopper. Built rugged in Eau Claire, Wisconsin, this heavy-duty hopper replaces your standard log lift to move rounds to your splitter—or split wood to your packaging station—with ease. Featuring a double chain drive and hydraulic flow control, it’s designed to handle high volumes with minimal effort.
Get a Quote
Ask a Question
Series Models
IC-16
Powered by your splitter’s existing hydraulic log lift circuit 500cc hydraulic motor with adjustable flow control
Arriving SoonSeries Models
IC-16
Arriving Soon
Powered by your splitter’s existing hydraulic log lift circuit 500cc hydraulic motor with adjustable flow control
Arriving SoonTake Your Production to the Next Level
Stop wrestling with heavy rounds and start moving more wood. The Wolfe Ridge IC-16 Infeed Conveyor Hopper is a heavy-duty powerhouse designed to bridge the gap between your wood pile and your splitter.
Whether you are loading rounds into the splitter or feeding finished wood to a packaging station, the IC-16 provides the mechanical muscle needed for high-volume operations. Built from the ground up in Eau Claire, Wisconsin, every unit is cut, fabricated, and welded to withstand the daily rigors of commercial firewood production.
Engineered for Performance
- Seamless Integration: Designed to plug directly into your wood splitter’s log lift circuit. It replaces your existing cylinder with a high-torque 500cc hydraulic motor.
- Precision Handling: The integrated flow control allows you to dial in the perfect speed for your workflow.
- Heavy-Duty Conveyance: A rugged double chain drive system equipped with bolt-on paddles ensures that even the largest rounds move smoothly and consistently.
- Industrial Finish: Every hopper is sandblasted and powder-coated to provide a long-lasting, professional finish that resists the elements.
Technical Specifications
| Feature | Details |
|---|---|
| Bed Length | 16-foot heavy-duty hopper bed |
| Max Exit Height | Approximately 8 feet |
| Weight | Approx. 2,200 lbs |
| Drive System | Double chain drive with heavy-duty bolt-on paddles |
| Hydraulics | 500cc motor with flow control (Requires external source/control) |
| Standard Colors | Red, Orange, Gray, or Blue (Custom RAL colors available) |
| Warranty | 1-year manufacturer warranty |
Key Features & Customization
- Mobile Ready: Built-in pallet fork pockets and height-adjustable legs make it easy to reposition the unit around your yard.
- Versatile Design: Features removable outfeed side panels and optional side wall extensions to increase hopper volume.
- Plumbing: Includes hoses with female 3/8" NPT thread ends. Optional flat-face quick connector kits are available.
- Wolfe Ridge Compatibility: An optional slide-on staging table is available to perfectly align the IC-16 with most Wolfe Ridge commercial splitters.
*Note: This unit requires an external hydraulic source, control, and fittings for operation.
