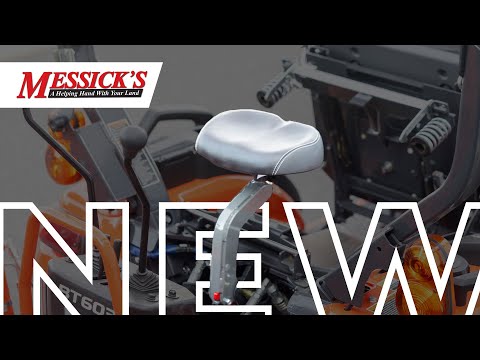

#BXRFBSFR Rear-Facing Backhoe Seat Assembly for BX Series Tractors (BT601/BT602/BT603)

Name: Field Ready #BXRFBSFR Rear-Facing Backhoe Seat Assembly for BX Series Tractors (BT601/BT602/BT603)
Brand: Field Ready
SKU: BXRFBSFR
Price: 139.0 USD
Availability: InStock

$139.00

45 In Stock

Weight: 8.00 lbs

Field Ready BXRFBSFR rear-facing backhoe seat assembly for BX Series tractors (Kubota BX sub-compact tractor series).

Rear-facing backhoe seat (also called a backhoe seat assembly)
Includes rear-facing seat assembly, mounting bracket, and hardware
Fits BT601, BT602, and BT603 backhoes on BX23D, BX24, BX25, and BX23S tractors
Fits BH70 (Backhoe model BH70) on B2301–B2601, but does not lock in place
Does not fit BT600 on BX22 / BX22D

This backhoe seat is intended for light-duty, stationary digging only. It is not designed for applications where the backhoe may cause sudden movements or jolting. For any such applications, the operator must use the tractor’s factory-installed swivel seat, equipped with appropriate safety restraints. Use of this backhoe seat in such conditions may result in serious injury or equipment damage. Always follow the manufacturer's operating guidelines and safety recommendations.

element not set

This part fits your tractor

This part fits 11 models

BT600 (6" BACKHOE REPLACEMENT / BX)

BT601 (QUICK ATTACH BACKHOE)

BT602 (BACKHOE REPLACEMENT FOR BX25D PNF)

BT603

BX22D

BX23S

BX23S-1

BX24D

BX25

BX25DLB

BX25DLB-1

Product Specifications

Property	Value
Brand	Field Ready
Backhoe Accessories	Seat

Installation Tips

(15 minutes)
The assembly pin that comes with is too long, so it hit a hose to the right. This required me to take apart and find a pin that would fit. A comment is that the seat is way too close to the control bars. It would be beneficial if the seat could be set back another 6 inches of more.

3/14/2026
WINTON, MN
Jeff

(2 minutes)
This is a great backhoe seat for light duty jobs to avoid having to lift and rotate the bulky and cumbersome seat on the BX tractor. The backhoe seat is easy to install; however, it is a bit wobbly in use. I installed a rubber grommet in the bracket (took some time to work it in with a flathead screwdriver) before installing the bolt and lynch pin. The rubber grommet adds enough pressure and friction that the wobble is now negated. Super easy solution!

11/9/2025
FORT MYERS, FL
Ken

(2 minutes)
The pin that came with the seat is too long. It rubs the hydraulic lines/connectors on each side. I would think that over time from engine vibration the pin will do some damage to the lines. I took the pin to a machine shop and had the pin shortened so it doesn't rub.

10/20/2025
KOSCIUSKO, MS
Dwain

(5 minutes)
Very easy and well thought out.

10/8/2025
GREENSBURG, PA
BAUER

(3 minutes)
Nice upgrade!

10/7/2025
CHAPEL HILL, NC
Dunk

(20 minutes)
Had to cut off both ends of the pin (with a cut off wheel on my hand held grinder, then smoothed out the edges with my table grinder) to be able to get it at the right angle to pass through on my 2012 kubota bx25. It looks great and functions well!

9/25/2025
CHESTERTON, IN
Ben

(20 minutes)
I placed shims on both sides to take out the slop side to side movements. Still trying to figure out how to get the bicycle seat to stay in one position when operating the backhoe. No matter how tight I tighten the seat it still rocks back-and-forth when working backhoe and hard dirt

9/18/2025
MINERAL WELLS, WV
Ira

(2 minutes)

9/13/2025
WILLINGTON, CT
Michael

(25 minutes)
I put spacers in the top link bracket to take up side play. To make the seat more stabile

9/11/2025
BLACK MOUNTAIN, NC
Bruce

Unrated (6 minutes)
I barely got to look at the seat before my kid took it to install it. I poured myself a cup of coffee and by the time I got to the tractor it was already installed.

8/13/2025
LINDEN, CA
Dennis

(5 minutes)
Very easy install very well built!!! Great product!

8/12/2025
MARYSVILLE, WA
Andy

(20 minutes)
Easy to install but I had to watch the video to see which way the seat went in the post. Once I figured that out it only took minutes to mount it.

8/12/2025
HALIFAX, PA
Bryan

(2 hours)
I have a 2019 bx 23s. The pin to install the seat interfered with the hydraulic coupling. I needed to cut off part of the head of the pin so it would work. Also, you will need to remove the two hoses to remove the seat. I think this will work fine on newer models of the BX 23S. Staff was very attentive to my concerns and gave me a credit

8/12/2025
Ann Arbor, MI
Robert

(30 minutes)
I Bought this for a Workmaster 25S and it fits just like on the BX. but I did weld a piece of metal to the top of the seat rest that is bolted to the three-point top link for the seat to rest against. but it will work without doing that just fine. even with the modification total install was 30 min. max

8/11/2025
GATE CITY, VA
K

(10 minutes)
The seat kit should be an easy install for those without a cab and should work well. I did have to bend a hydraulic line to provide clearance for the pin. With my cab, the framing stops the seat from going back far enough for the seat to go into the locking position, so I have more work to do. I believe I can cut a slot in the frame where the seat support hits to make it lock properly.

8/11/2025
LA PINE, OR
MARTIN

(1 day)
I own a 2013 BX25D. The clevis pin that came with the seat was too long. The pin blocked the hydraulic connections. I had to make a pin so I could connect the hydraulic lines.

8/11/2025
SAYRE, PA
Donald

(5 minutes)

8/9/2025
BLANCHARD, PA
Matthew
