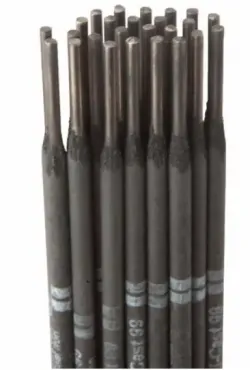

#F45301 E Ni-CI, Cast Iron 99 Electrode, 3/32 in x 1 Pound

Super Ni-Cast 99% nickel special welding electrodes feature a non-conductive coating that is ideally suited for welding all grades of gray cast-iron - particularly thin sections and welds requiring the highest possible machinability.

Typical applications include automotive engine blocks, transmission and pump housings.

• Hardness: Rockwell B 82-84, Brinell 155, Vickers 14
• Recommended Polarity: DC Reverse (+) or AC
• Diameter: 3/32"
• Length: 12"
• Weight Lbs. (Kg): 1 (.453)
• Tensile Strength: 55,000 PSI (380 MPa)
• Yield Strength: 38,000 PSI (270 MPa)
• Amperage: 70-90
• WELDING POSITIONS

Flat, vertical up, vertical down, horizontal and overhead

WELDING TECHNIQUES

Maintain a close arc gap and move rapidly in the direction of travel. Slag can be welded over without removal.
