3D-Printed Storage Tubes for Kubota Tractor Loaders: A Customizable Storage Solution

Quick Summary

A scalable, 3D-printed storage tube system designed to fit Kubota loaders. Features include magnet-equipped caps for secure, easy access, compatibility with a range of Kubota tractor sizes (from compact B-series to LX-series), and cost-efficient customization. Starts at around $29 per tube, with discounts for multiple units. Learn how this DIY approach can expand storage on your machine and how Messick's can help with parts and support.

Overview

When you’re working on a machine, you need practical places to store small parts and tools. Traditional, factory-style storage tubes often cater to larger machines, leaving owners of smaller Kubota tractors short on options. A practical, scalable solution was developed using 3D printing and CAD design to create compact storage tubes that slide into the loader area and stay secure during work.

The design idea was inspired by a popular storage-tube concept and adapted for Kubota loaders. The result is a tube system that is:

• Smaller and optimized for 3D printing, yet versatile enough for a range of Kubota models
• Capable of holding various small parts, with a secure fit that won’t easily pull out
• Customizable in size to fit different loader bases and stock tubing

How It Works

The core idea uses two main components: a tube stock and a cap with magnets. The cap contains button magnets that sit inside the cap to hold the tube securely in place within the loader. A simple printing workflow is used to assemble the system:

• 3D printing is used to produce a tube that is smaller and optimized for your specific Kubota tractor model
• A high-temperature, UV-resistant filament is recommended for durability in outdoor use
• During the print, a stop is programmed so magnets can be placed inside the cap, then printing resumes to seal the magnets inside
• The resulting assembly keeps contents snug in the loader area and allows easy removal when needed

The design uses the same overall length across different sizes. The magnet-assisted cap ensures the tube remains in place during operation, yet can be pulled out with a little tug when you need access to the stored items.

Compatibility and Sizing for Kubota Tractors

The system is designed to scale for common Kubota loader bases. A larger tube stock at the base of the loader accommodates bigger tubes, while a smaller variant fits the front loader area on compact models. In practice:

• Large Kubota models (loading capacity and loader base) can use the larger-tube design

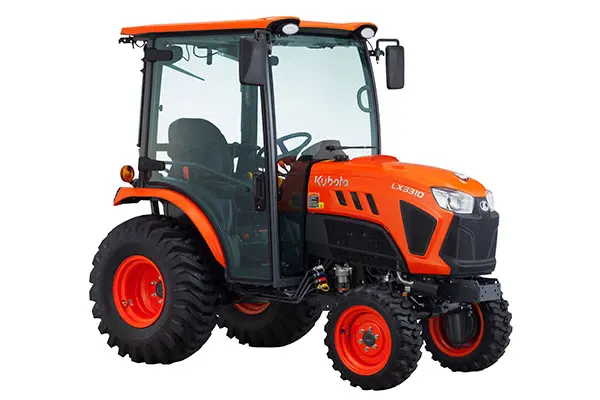

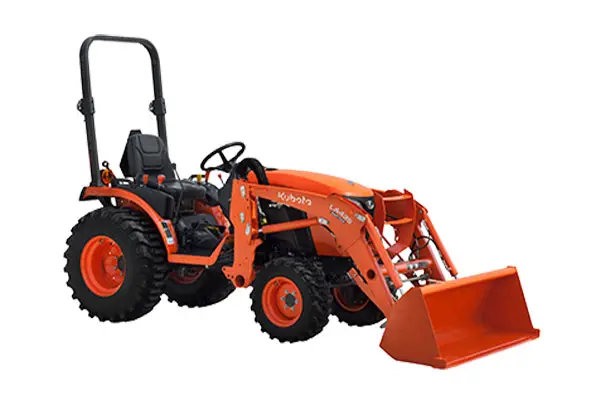

• Smaller Kubota tractors (B-series, LX-series) use a compact version with a shorter, narrower tube
• Base diameter to target is approximately 60 mm (about 2.5 inches)
• A smaller tube stock is still used on the loader to maintain a consistent look and fit

The same magnet-and-cap concept is carried across sizes to keep contents secured without excessive force. If you measure your loader base, you’ll find the design scales to fit both the large and small Kubota loader footprints.

Cost and Customization

One of the advantages of producing these tubes with a 3D printer is the ability to customize parts quickly and without heavy tooling costs. The smaller Kubota variants (B-series and LX-series) can be produced with a tube stock that fits the base loader, and the system supports a number of configurations:

• Storage tubes for small Kubota tractors start around $29.95 per unit
• Buying multiple units reduces the per-piece cost through quantity-based discounts
• Additional tubes can be added around the machine to maximize on-tractor loader storage

The design is particularly attractive because it avoids the higher expense of traditional, molded plastic parts. A 3D-printed approach allows rapid iteration and easy adjustments to fit your exact loader and tube stock needs.

Frequently Asked Questions

What are these storage tubes designed to hold?

They’re intended for small parts and tools you carry on the loader, including items like chainsaw accessories, fasteners, and small hand tools.

What material is used for printing?

High-temperature resistant, UV-stable filament is used to withstand outdoor use and loader heat. This supports durable, long-lasting parts for Kubota loaders.

What is the starting price, and are there discounts?

Storage tubes for the smaller Kubota tractors start at about $29.95. As you add more units, discounts can lower the per-piece cost, making it economical to outfit the machine with multiple tubes.

How can I order from Messick's?

Contact Messick’s at 800-222-3373 or browse messicks.com for related loader storage solutions and Kubota parts. A parts specialist can help you select the right size and quantity for your setup.
