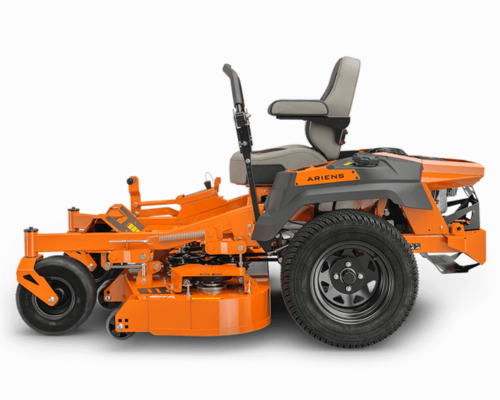

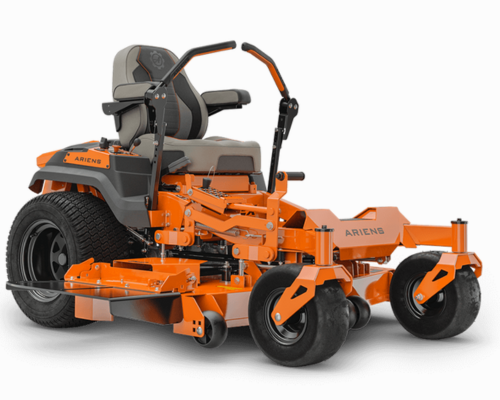

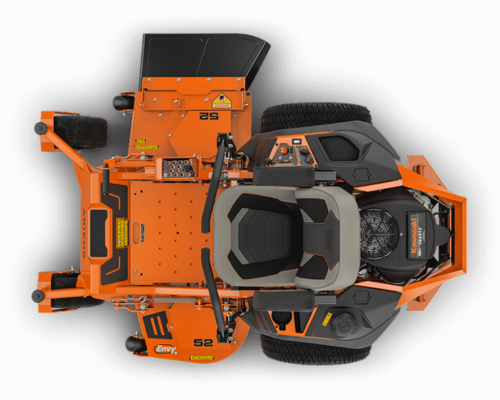

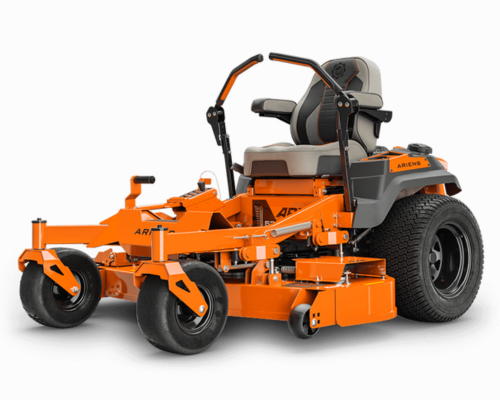

Ariens APEX 52

The Ariens APEX 52 Kawasaki® is a commercial-grade zero-turn mower built for serious performance and long-lasting durability. At its heart is a 23 HP, 726cc Kawasaki® FR691V engine, delivering reliable power for demanding mowing conditions. The 52-inch ENVY™ ELITE CUTTING SYSTEM deck is fabricated from 10-gauge steel and is 5½ inches deep, designed to provide superior airflow and a precision cut. Built on a fully tubular steel frame, the APEX 52 features self-adjusting belt technology, a foot-operated deck lift with assist spring, and a high-back padded seat with armrests for all-day comfort. With Hydro-Gear® ZT-3100® transaxles, it achieves ground speeds up to 8 mph forward and 4 mph in reverse. Offering 15 cutting positions ranging from 1.5" to 5", a 5.1-gallon fuel capacity, and a 4-year or 500-hour warranty, the APEX 52 is engineered to handle both residential acreage and light commercial use with ease and comfort.

Ask a Question

Engine

Engine Brand: Kawasaki® FR691V
Engine Displacement: 726 cc
Horsepower: 23 HP
Fuel Capacity: 5.1 gal / 19.3 L

Cutting Deck

Deck Type: ENVY™ ELITE CUTTING SYSTEM
Deck Material: 10-gauge fabricated steel
Deck Width: 52 in / 132.1 cm
Deck Depth: 5.5 in
Cutting Height Range: 1.5 in – 5 in (3.8 cm – 12.7 cm)
Cutting Positions: 15
Spindle Material: Forged aluminum
Deck Engagement: Electric Warner clutch
Deck Lift System: Foot-operated
Deck Lift Assist Spring: Standard
Transport Lock: Standard

Drive System

Transmission: Hydro-Gear® ZT-3100® transaxles
Ground Speed (Forward): Up to 8 mph / 12.9 kph
Ground Speed (Reverse): Up to 4 mph / 6.4 kph

Dimensions & Weight

Assembled Weight: 816 lb / 370.1 kg
Length: 79 in / 200.7 cm
Width (Chute Up): 56.2 in / 142.7 cm
Width (Chute Down): 67.3 in / 170.9 cm

Comfort & Features

Seat: High-back padded seat with armrests
Deck Lift: Foot-operated with assist spring
Frame: Fully tubular steel
Belt System: Self-adjusting belt technology
Lights: Available as accessory
Seat Isolation: Available as accessory

Warranty

Product Warranty: 4 years or 500 hours
