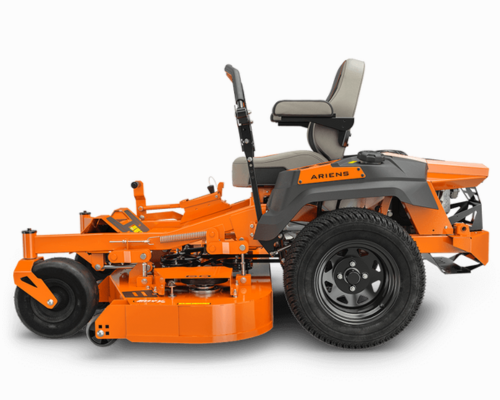

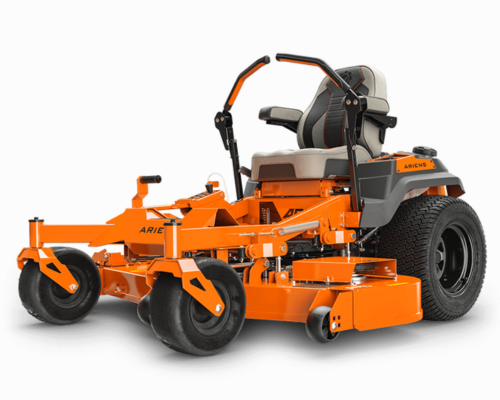

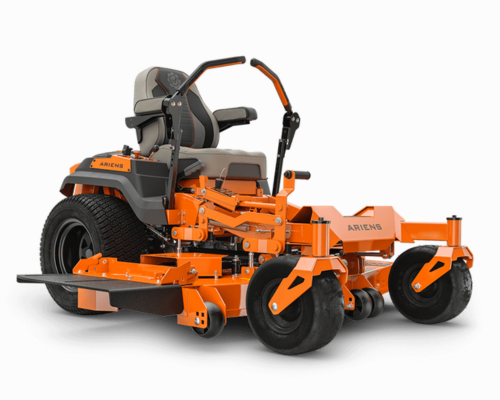

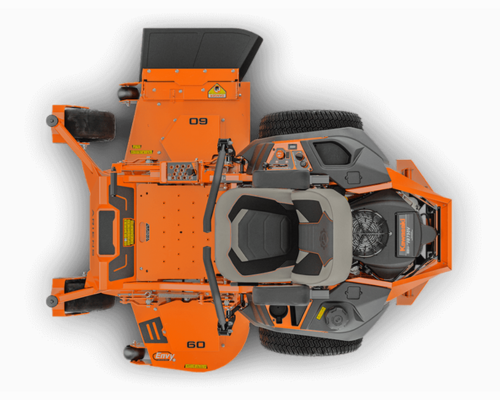

Ariens APEX 60

The Ariens APEX 60 Kawasaki® (Model 991163) is built for serious mowing power and professional-grade performance. At its core is a 24 HP, 726cc Kawasaki® FR730V engine—the most powerful in the APEX lineup—delivering reliable strength for large and challenging lawns. Its 60-inch ENVY™ ELITE CUTTING SYSTEM deck is fabricated from 10-gauge steel, 5.5 inches deep, and designed for optimal airflow and a clean, consistent cut. With a fully tubular steel frame, self-adjusting belt technology, and a foot-operated deck lift with assist spring, this mower is engineered for durability and ease of use. The Hydro-Gear® ZT-3100® transaxles provide smooth handling and ground speeds up to 8 mph forward and 4 mph in reverse. Comfort comes standard with a high-back padded seat and armrests, while 15 cutting positions and a 5.1-gallon fuel tank make this zero-turn mower ideal for residential acreage and light commercial use. Backed by a 4-year or 500-hour warranty, the APEX 60 is ready for whatever your property demands.

Ask a Question

Engine

Engine Brand: Kawasaki® FR730V
Engine Displacement: 726 cc
Horsepower: 24 HP
Fuel Capacity: 5.1 gal / 19.3 L

Cutting Deck

Deck Type: ENVY™ ELITE CUTTING SYSTEM
Deck Width: 60 in / 152.4 cm
Deck Depth: 5.5 in
Deck Material: 10-gauge fabricated steel
Cutting Height Range: 1.5 in – 5 in (3.8 cm – 12.7 cm)
Cutting Positions: 15
Spindle Material: Forged aluminum
Deck Engagement: Electric Warner clutch
Deck Lift System: Foot-operated
Deck Lift Assist Spring: Standard
Transport Lock: Standard

Drive System

Transmission: Hydro-Gear® ZT-3100® transaxles
Ground Speed (Forward): Up to 8 mph / 12.9 kph
Ground Speed (Reverse): Up to 4 mph / 6.4 kph

Dimensions & Weight

Assembled Weight: 845 lb / 383.2 kg
Length: 79 in / 200.7 cm
Width (Chute Up): 63.7 in / 161.8 cm
Width (Chute Down): 74.8 in / 190 cm

Comfort & Features

Seat: High-back padded seat with armrests
Frame: Fully tubular steel
Belt System: Self-adjusting belt technology
Deck Lift: Foot-operated with assist spring
Lights: Available as accessory
Seat Isolation: Available as accessory

Warranty

Product Warranty: 4 years or 500 hours
