Triple Disc Mower Combination

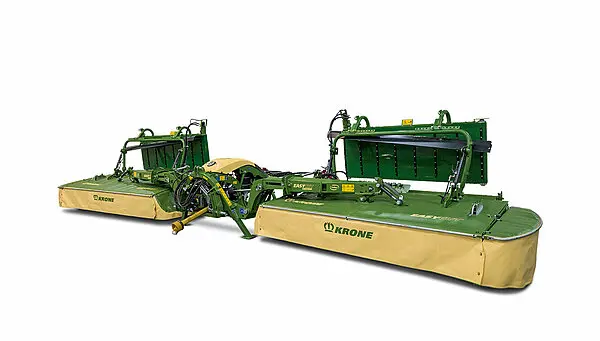

KRONE EasyCut B 1050 CV Triple Mower
A high-capacity butterfly mower combination built for wide working widths, clean cutting, active crop conditioning, and efficient forage harvesting in demanding field conditions.
Maximum Output With Clean Crop Flow
The EasyCut B 1050 CV combines hydraulically adjustable working widths, CV tine conditioning, hydro-pneumatic ground pressure control, and convenient cab operation to help crews cover acres quickly while protecting forage quality.
Product Features & Improvements
The KRONE EasyCut B 1050 CV is engineered to improve mowing productivity, cut quality, crop drying, contour following, overlap control, and operator convenience.
Hydraulically Adjustable Working Width
The working width adjusts from 9.30 m to 10.45 m, helping operators match overlap to field shape, slope, turns, and front mower width.
High Acreage Output
A wide triple mower layout helps operators cut more acres per hour during short hay and forage harvest windows.
CV Tine Conditioner
V-shaped steel tines condition the crop to speed drying and support consistent forage preparation before raking, merging, baling, or chopping.
Hydro-Pneumatic Compensation
Constant bearing pressure and cab-controlled hydraulic relief help the mower units follow ground contours while maintaining uniform ground pressure.
Strip-Free Mowing
Adjustable overlap between mower units helps prevent uncut strips on slopes, around curves, and during tight turns.
Efficient Driveline
Gearboxes and universal shafts deliver reliable power transfer to the mower units for consistent cutting performance.
Cab-Based Operation
Electrical preselection box or ISOBUS terminal control allows operators to manage mower functions conveniently from the tractor cab.
Compact Transport Position
Rear mower units fold upward for road transport, helping move safely between fields while maintaining practical road handling.
Collect Option Available
Collect configurations can support swath grouping strategies that reduce later passes and improve harvest logistics.
Application & Use In The Field
The EasyCut B 1050 CV is built for large-acre hay, forage, dairy, and custom harvesting operations that need wide cutting capacity, fast drying, and consistent ground following.
Large-Acre Mowing
Wide working width helps operators cover more acres per hour during narrow weather windows.
Hay & Forage Production
Clean cutting and CV tine conditioning help prepare crop for faster drying, baling, chopping, or merging.
Rolling Or Uneven Ground
Hydro-pneumatic relief helps mower units follow contours and maintain a consistent cut across changing terrain.
Custom Harvest Crews
High output, easy adjustment, and cab-based control support long mowing days across varied fields and customer conditions.
Curves & Slopes
Hydraulic width adjustment helps maintain overlap and reduce uncut strips on side hills, turns, and irregular field edges.
Field-To-Field Transport
Folding mower units make it easier to travel between fields while maintaining road-ready handling and visibility.
Key Specifications
Core specifications for the KRONE EasyCut B 1050 CV triple mower combination.
| Model | KRONE EasyCut B 1050 CV |
|---|---|
| Machine Type | Triple disc mower combination / butterfly mower |
| Working Width | 9.30 m to 10.45 m hydraulically adjustable |
| Conditioner Type | CV conditioner with V-shaped steel tines |
| Ground Pressure Control | Hydro-pneumatic compensation with cab-controlled hydraulic relief |
| Operation | Electrical preselection box or ISOBUS terminal |
| Drive System | Gearboxes and universal shafts to mower units |
| Overlap Control | Hydraulic working-width adjustment for strip-free mowing |
| Transport | Rear mower units fold for road transport |
| Primary Use | Large-acre hay, forage, dairy, and custom mowing operations |
Quick Spec Format
9.30-10.45 m Working Width, CV Tine Conditioner, Hydro-Pneumatic Ground Pressure Control, Cab-Based Operation, Folding Transport, Collect Option Available
Wide-Cut Productivity With Conditioning Control
The KRONE EasyCut B 1050 CV helps hay and forage crews mow faster, condition crop effectively, follow field contours, and maintain clean cutting performance across large acreage.
