Landpride #380-152A Kubota Std L Series Third Function Valve Kit

$1060.68

21 In Stock

Weight: 22.30 lbs

For L2501, L3301 & L3901 Kubota Tractors with LA525 Loader
For L3200 & L3800 Kubota Tractors with LA524 Loader
For L4600 Kubota Tractor with LA764 Loader
For L4701 Kubota Tractor with LA765 Loader

Kit will also Fit an L3130 w/ either LA513 or LA723 Loaders. Click here for Special Install Document.

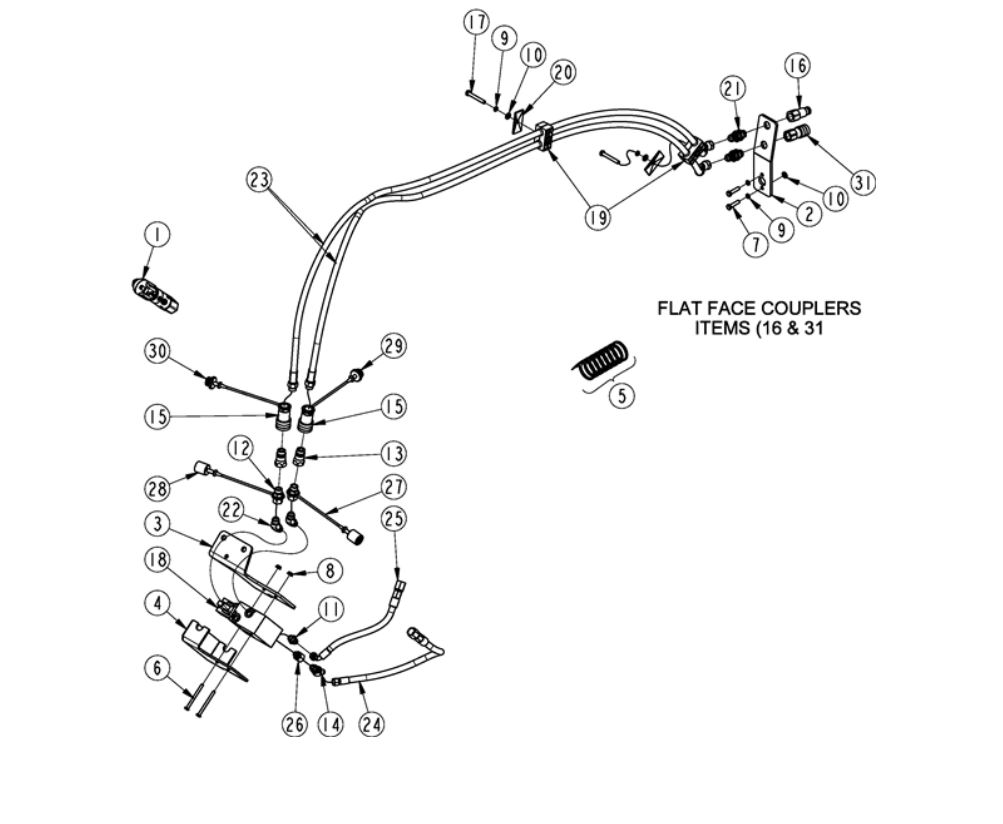

Install Instructions

Dealer Install Instructions(Colored Copy)

**Male fitting connections will take a Safeway "S25-4" female coupler to connect too.**

***Will not install correctly for units equipped with a backhoe. Kit is designed for Tractors without a backhoe. If you have a backhoe equipped you may have to get some custom hoses & fittings made because the ones in the kit may not be long enough.***

This part fits your tractor

This part fits 22 models

L2501D (4WD TRACTOR W/FOLDABLE ROPS)

L2501F (2WD TRACTOR W/FOLDABLE ROPS)

L2501H (4WD HST TRACTOR W/FOLDABLE ROPS)

L3130DT/GST/HST (Dual Traction, 4wd / Glide Shift Transmission /Hydrostatic Transmission)

L3130F (2wd)

L3200DT (Dual Traction 4wd)

L3200F (2wd)

L3200H (Hydrostatic Transmission)

L3301DT (4WD TRA W/GEAR TRANS/FOLD ROPS)

L3301F (2WD TRA W/GEAR TRANS/FOLD ROPS)

L3301H (4WD TRA W/HYD TRANS/FOLD ROPS)

L3800DT (Dual Traction 4wd)

L3800F (2wd)

L3800H (Hydrostatic Transmission)

L3901DT (4WD TRA W/GEAR TRANS/FOLD ROPS)

L3901F (2WD TRA W/GEAR TRANS/FOLD ROPS)

L3901H (4WD TRA W/HYD TRANS/FOLD ROPS)

L4600DT (Dual Traction 4wd)

L4600H (Hydrostatic Transmission)

L4701DT (4WD INTERIM TIER 4 TRA W/FOLD ROPS)

L4701F (2WD INTERIM TIER 4 TRA W/FOLD ROPS)

L4701H (4WD INTERIM TIER 4 TRA/HST W/FLD ROP)

Installation Tips

(3 hours)

7/22/2022
WRIGHT CITY, MO
Tim

(3 hours)

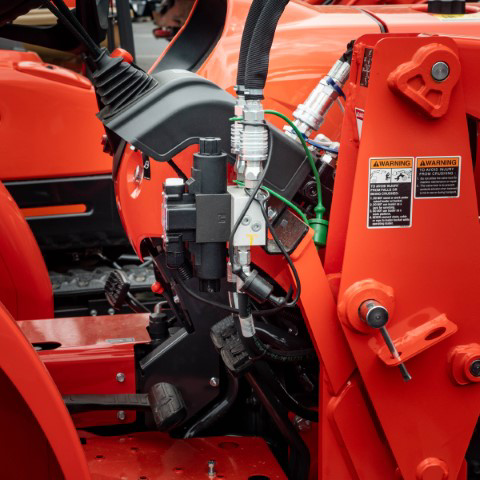

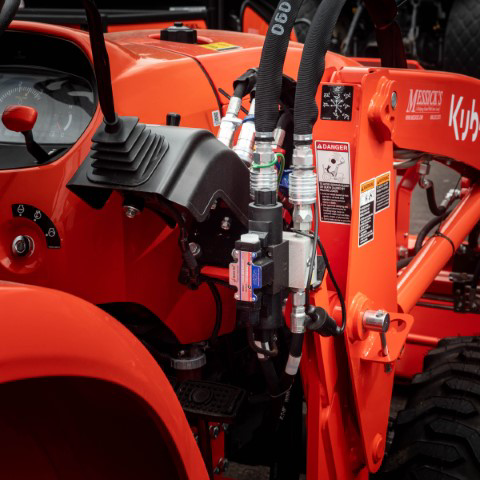

Hooking up to the hydraulic block is recommended to be done by dealer, however it can be easily done by owner. For my particular model L3200, the hydraulic block and power beyond is located under the platform on the right side of tractor. The hose with the curved end goes to this connection (have to remove the hose going from power beyond port to loader). The instructions have it the opposite way, can be confusing.

6/18/2022

Just follow the instructions. There are also several videos that help om You Tube. Took us about two hours to install the kit. Keep you hose routing neat and secure it per instructions. On the wiring, to keep it neat and avoid problems, shorten where necessary. We also installed a lighted power switch, (green light) which I would recommend so you don't activate/pressurize the kit when a third function implement isn't being used.

1/5/2022
Morris, IL
Rodney
