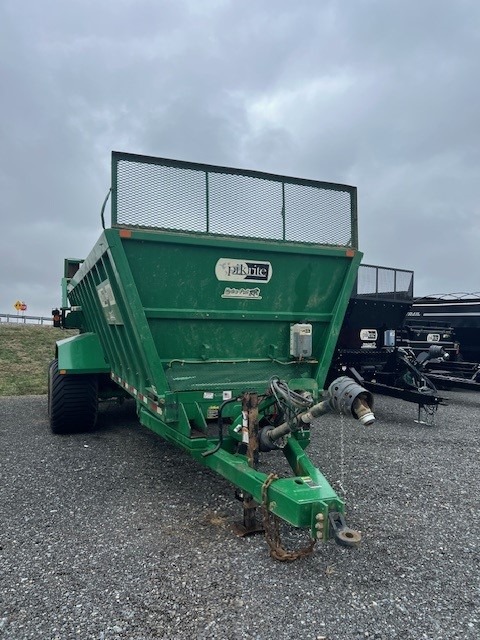

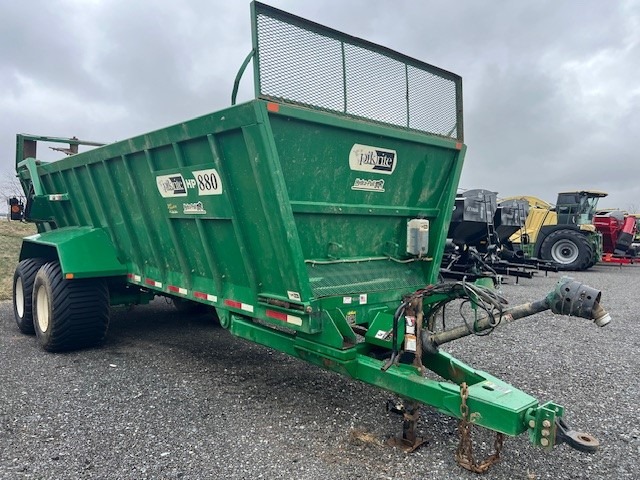

Used PIK RITE HP880

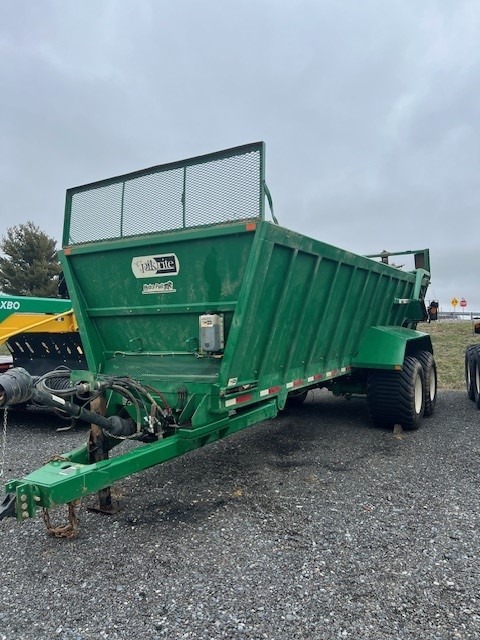

For larger farm operators and custom haulers with unique requirements, Pik Rite introduces the HP 880 spreader.

Efficiency Highlights:

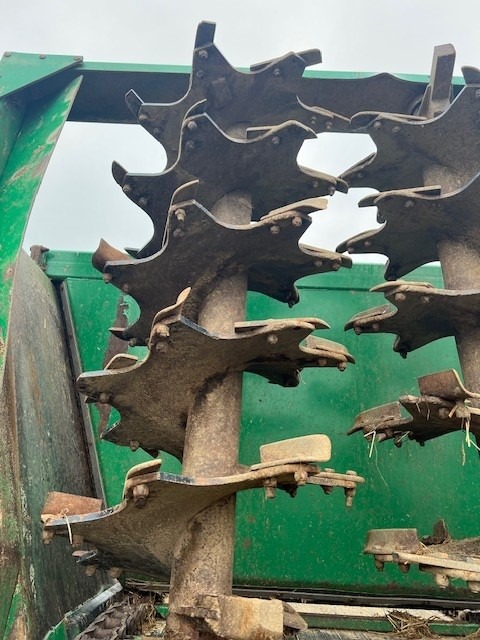

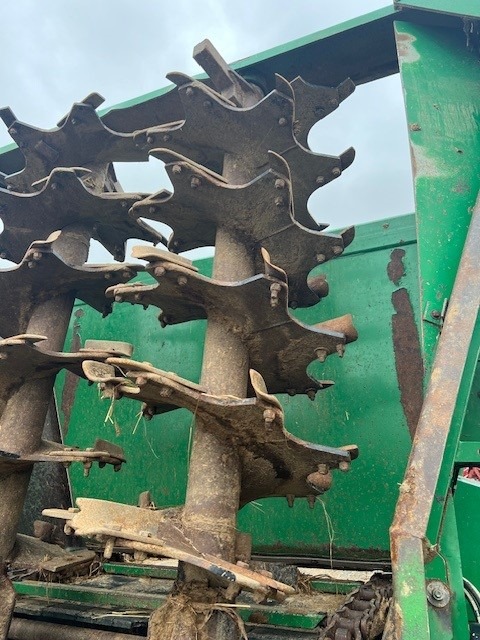

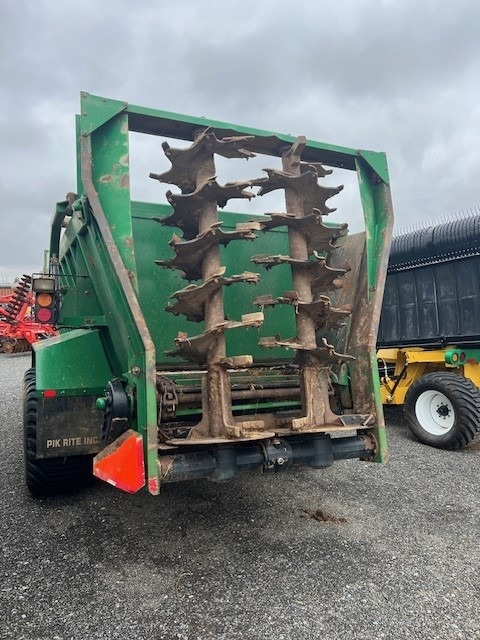

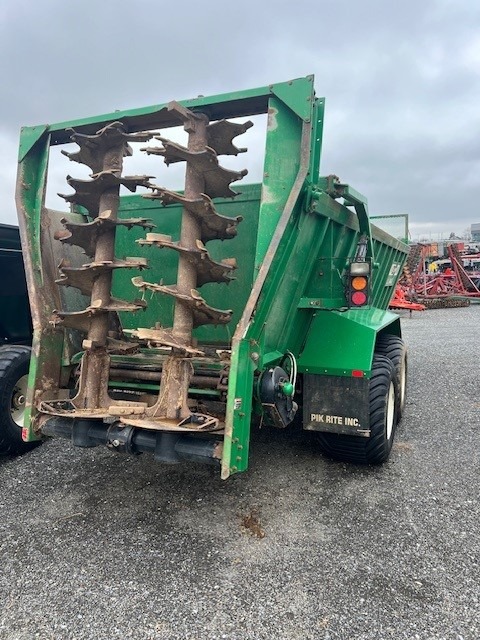

• Vertical beaters efficiently shred heavy materials, ensuring a wide and consistent spread pattern.
• Compost beaters spread lighter materials evenly at a controlled rate.
• Adjustable apron speed (ranging from 0 to 16 ft. per minute) offers versatility.
• Robust walking beams handle heavy-duty work.
• Equipped with road safety and field work lights.

Durability Features:

• Includes a side wind jack with a safety chain.
• Utilizes a sturdy pintle chain with stainless steel pins.
• Incorporates spring-loaded take-up bearings, allowing chain flex without damage.

Operator-Friendly Attributes:

• Bearings equipped with accessible grease fitting banks for easy maintenance.
• Sloped sides facilitate loading.
• The hydraulic metering end gate manages free-flowing materials efficiently.
• Available in traditional green, industrial yellow, red, or blue.

Key Features:

• Impressive 880-bushel capacity.
• Direct drive beater system.
• Heavy-duty pintle chain.
• Metering guillotine end gate.
• Quick-detach beaters, interchangeable for compost or vertical beaters.
• Ready for weigh scale installation.
• Flared sides with optional side extensions.
• Clutch-protected drivelines to prevent slip/over-run.
• Proudly manufactured in the USA.

Specifications:

• Capacity: 880 Bushels.
• Struck Level ASAE S324.1: 712 cu. ft.
• Heaped ASAE S324.1: 1096 cu. ft.
• Load carrying capacity: 24.2 tons.
• Inside width of the box: 60 in. - 96 in.
• Depth of the box: 52-1/4 in.

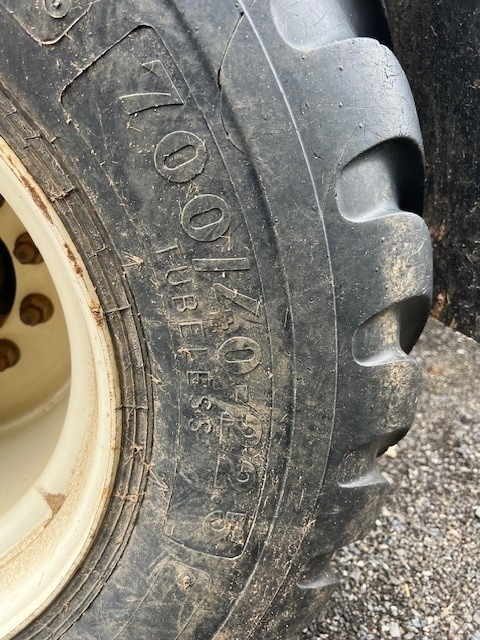

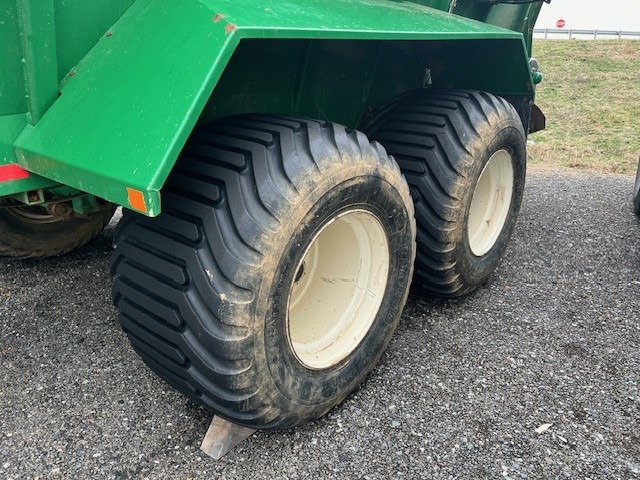

• Overall width with flotation tires (tire size): 11 ft. (700/40-22.5).
• Overall height: 10 ft. 9 in. (gate closed).
• Overall length: 31 ft. 6 in.
• Bed length: 24 ft.
• Loading height: 7 ft. 9 in.
• Number of beaters: 2.
• Beater speed: 420 RPM.
• Fan diameter: 34-5/8 in.
• Number of paddles on beaters: 70.
• Minimum recommended tractor PTO HP: 200 HP.
• Number of unloading speeds: Infinite from 0-15.21 ft./min.
• PTO speed: 1000.

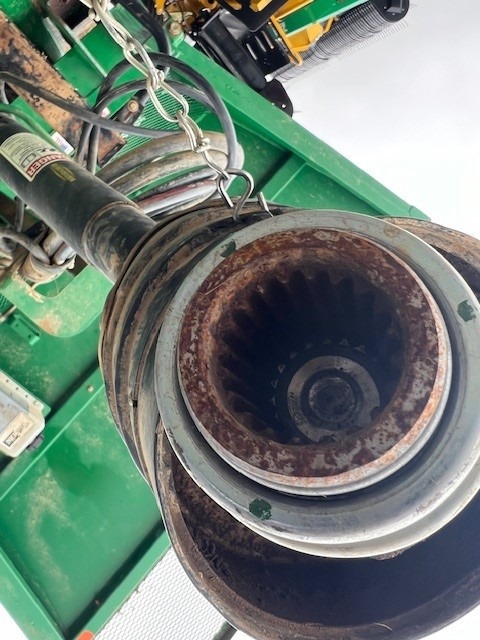

• PTO shaft diameter: 1-3/4 in.
• Number of end gate cylinders: [Information missing].
• Tare Weight: 17,040 lbs.
