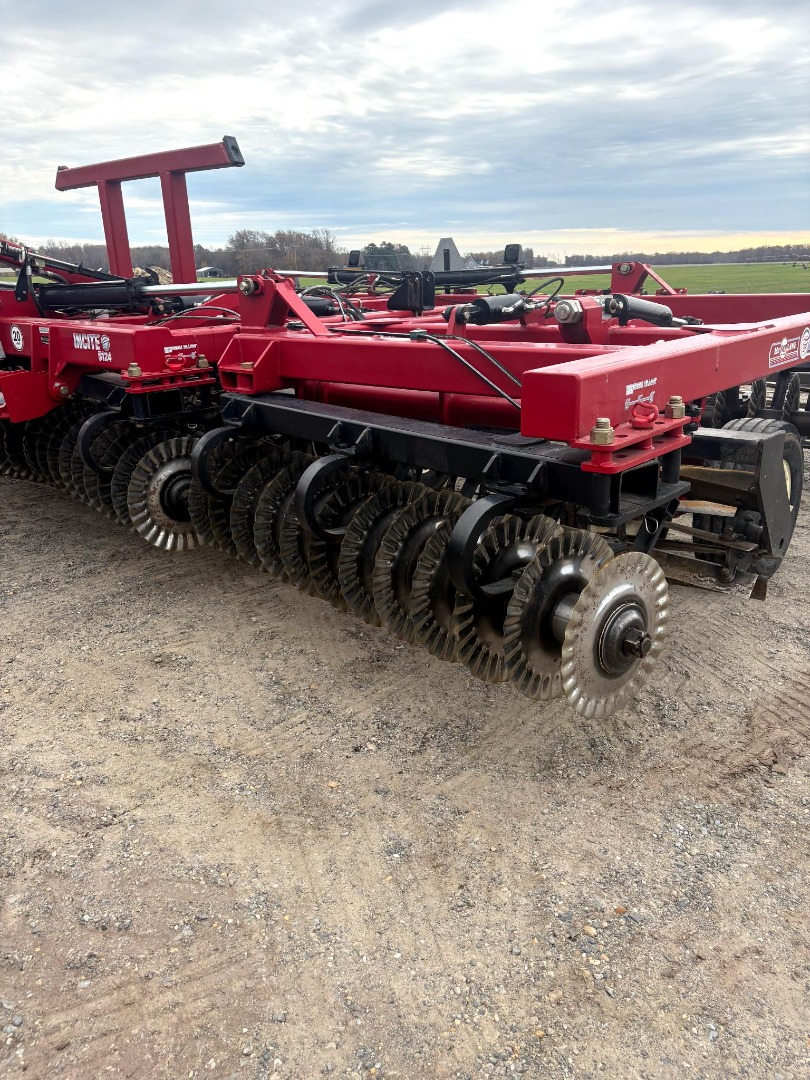

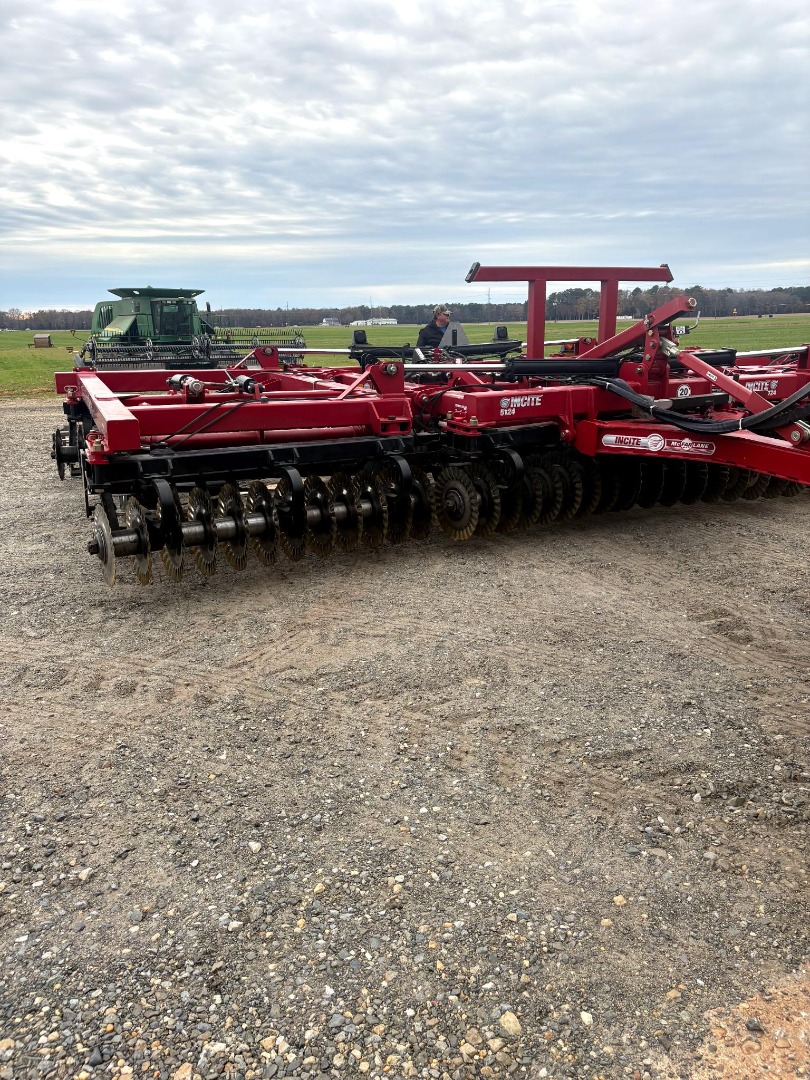

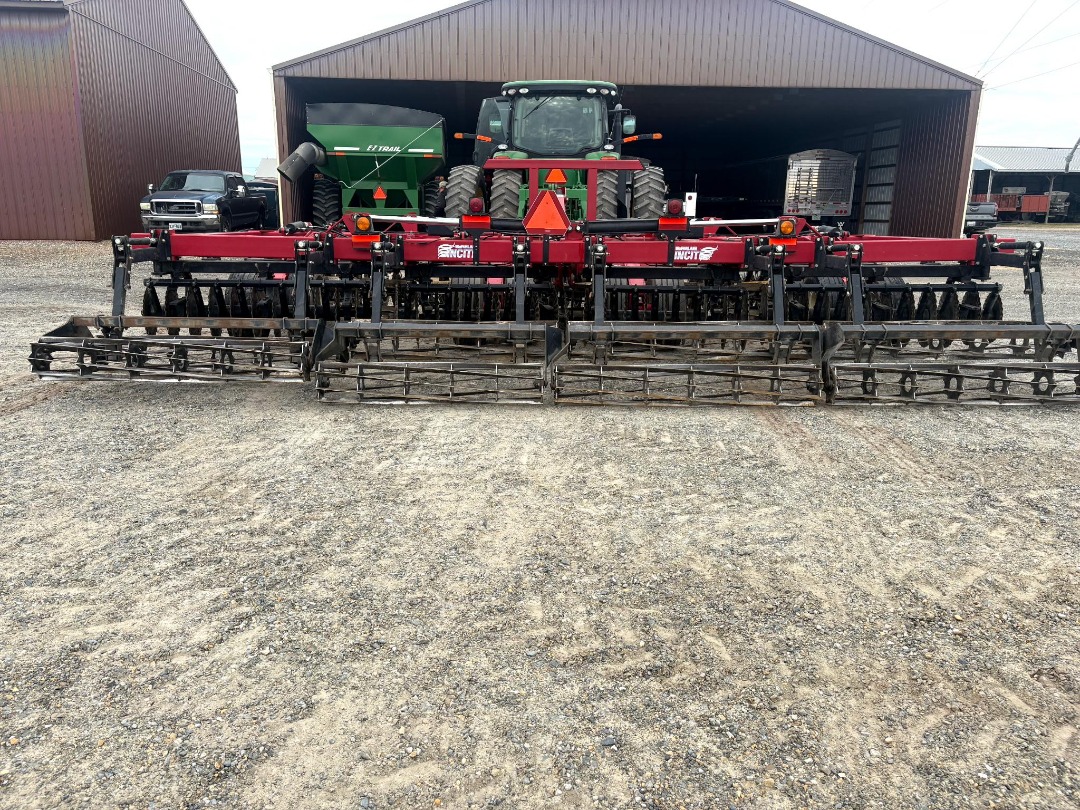

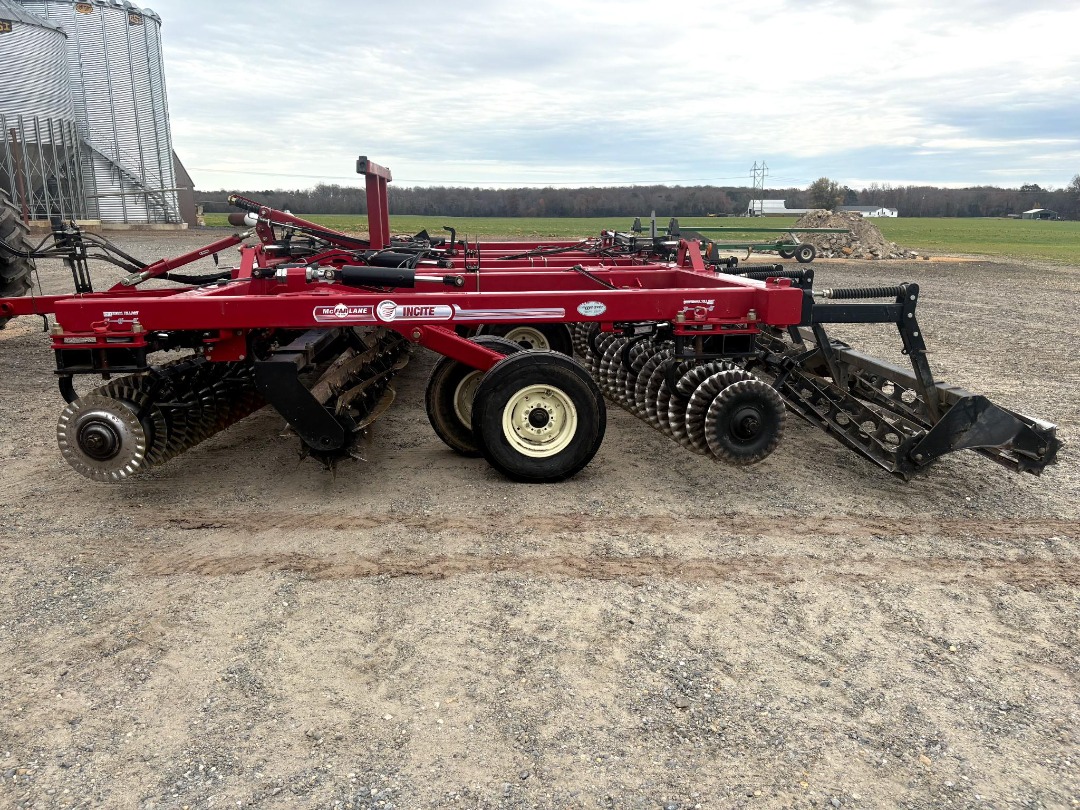

23' 5" cutting width, 13' 8" transport width, weighs approx. 18,500 pounds, The Incite is an evolution in vertical tillage, as it provides the flexibility to adjust to different soil types and conditions from field-to-field and from year-to-year. The versatility of this tillage tool allows conservation tillage and minimum-tillage growers to accomplish in a single pass what once would take multiple passes with different tillage equipment, on-the-go disk angle adjustment from 3°, 6°and 9°. INCIZOR® Blades - Unique blade featuring 22" diameter 6mm razor-sharp reversed crimped blades for greater strength. Capable of 6" depth, Hydraulic Dura-Reel® Height Adjust - Adjustable reel depth from disk depth to 8" above the bottom of the disk blade. Dura-Reel® Patent pending - 7-blade 18" diameter open center reel with no center shaft for better material flow and resists plugging in wet, sticky soil with 5-Bolt hubs for added strength and durability. Double Rolling Baskets - Provides the finishing touch with 8-high carbon flat bars that have adjustable down pressure to meet varying field conditions. Convenient settings for more aggressive clod sizing or less aggressive for soil separating. Its flexibility allows residue to flow and easily raises or lowers to conform to various soil and residue conditions. 8 bolt 320/70R15 Tires on walking tandems on main frame, and 6 bolt 280/70R16 tires on walking tandems on wings. Requires 4 hydraulic remotes
Key Features
-
Universal Tillage® Selector – On-the-go disc gang angle adjustments at 3°, 6°, or 9°.
-
Hydraulic Dura-Reel® Height Adjust – Set reel height from blade depth up to 8" above.
-

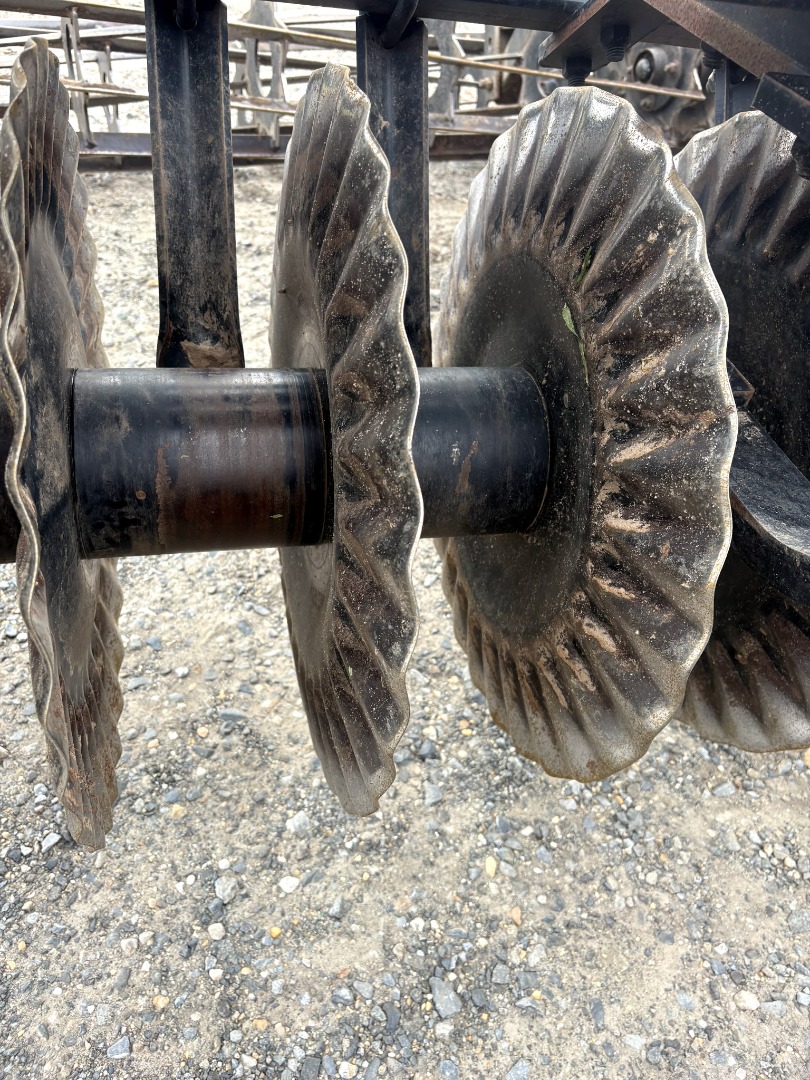

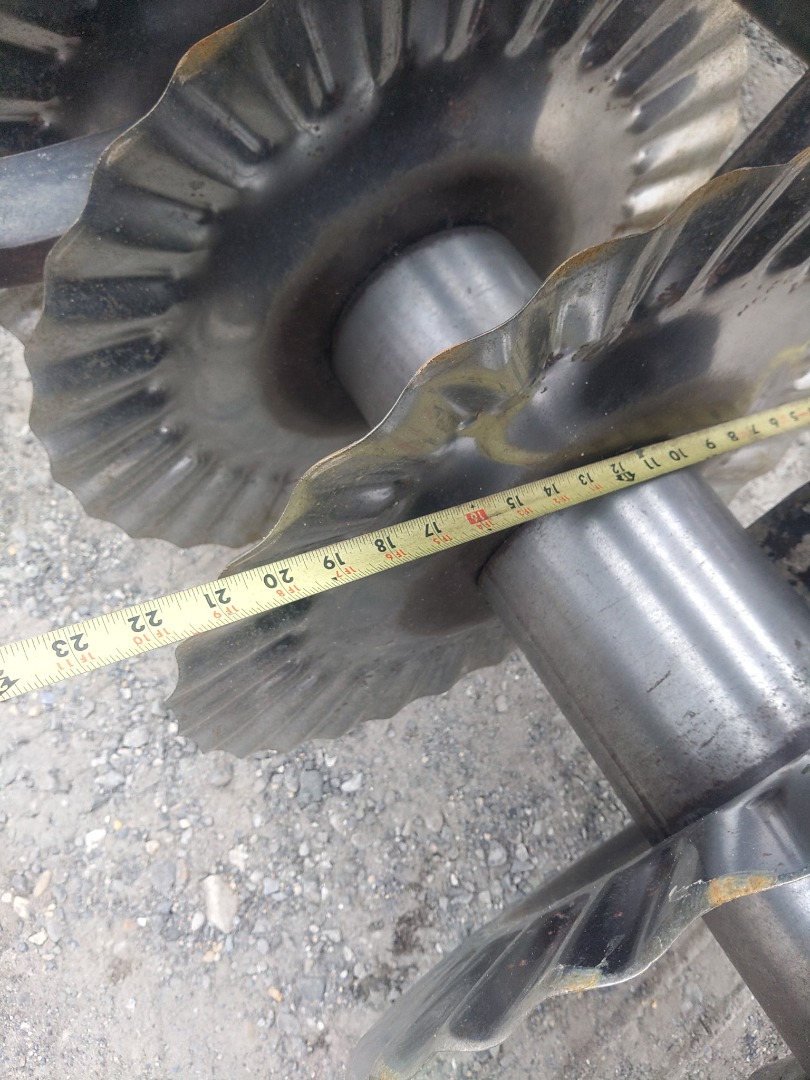

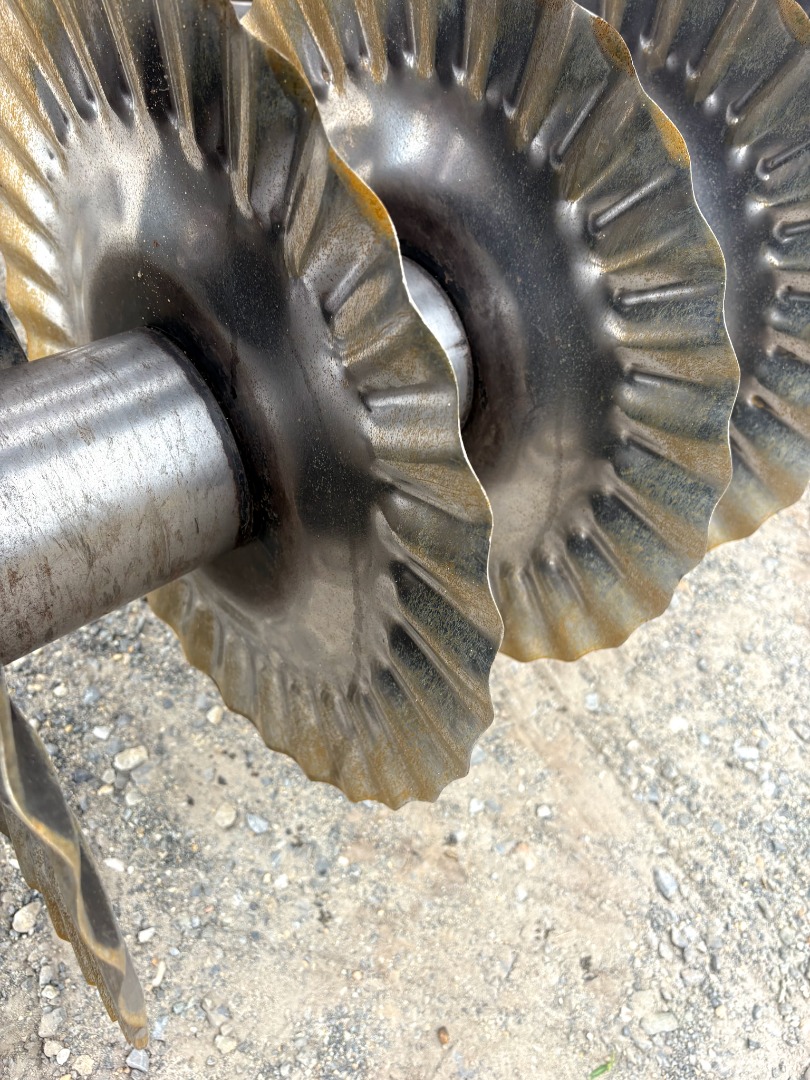

INCIZOR® Blades – 22" diameter, 6mm crimped, razor-sharp blades capable of 6" tillage depth.
-
Dura-Reel® (Patent Pending) – 7-blade, 18" open-center reel prevents plugging and improves flow.
-
5-Bolt Reel Hubs – Provide added strength and long-term durability.
-

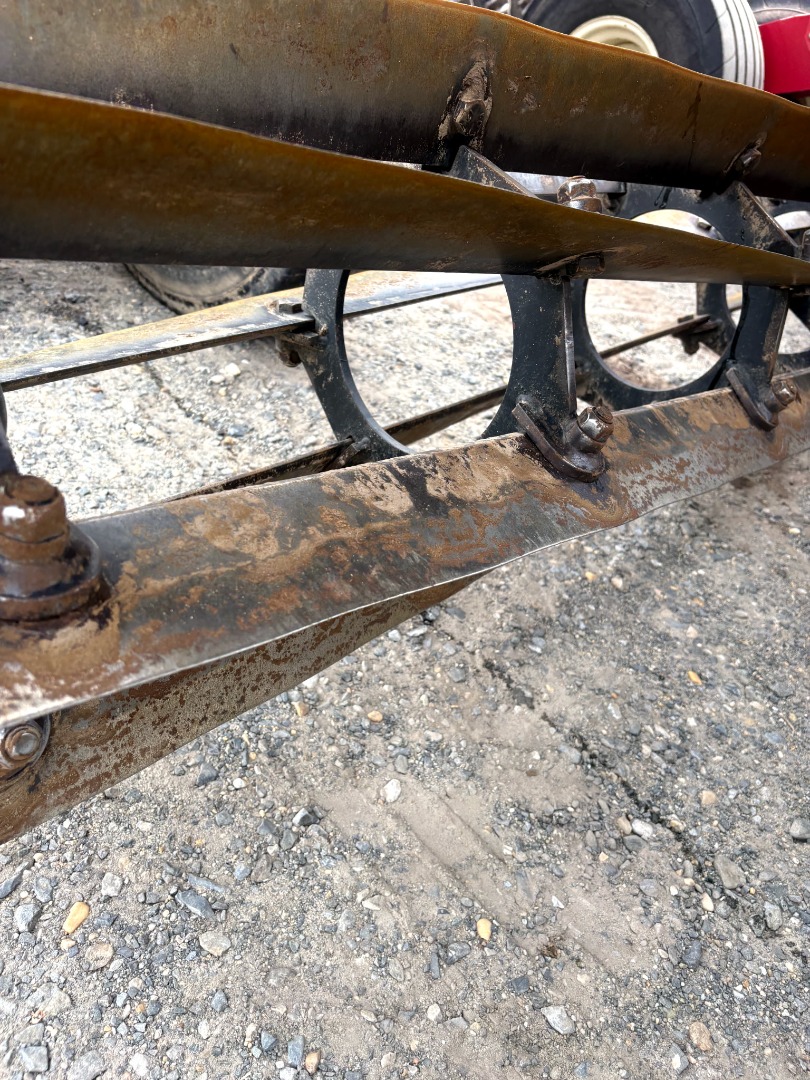

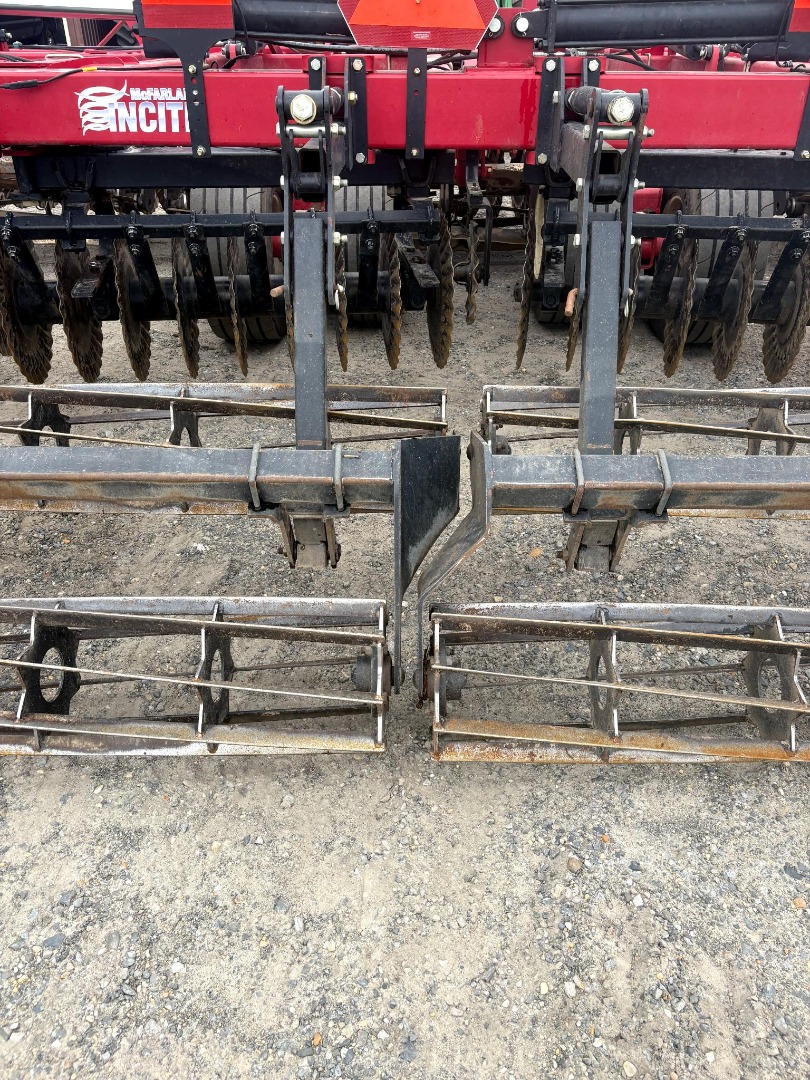

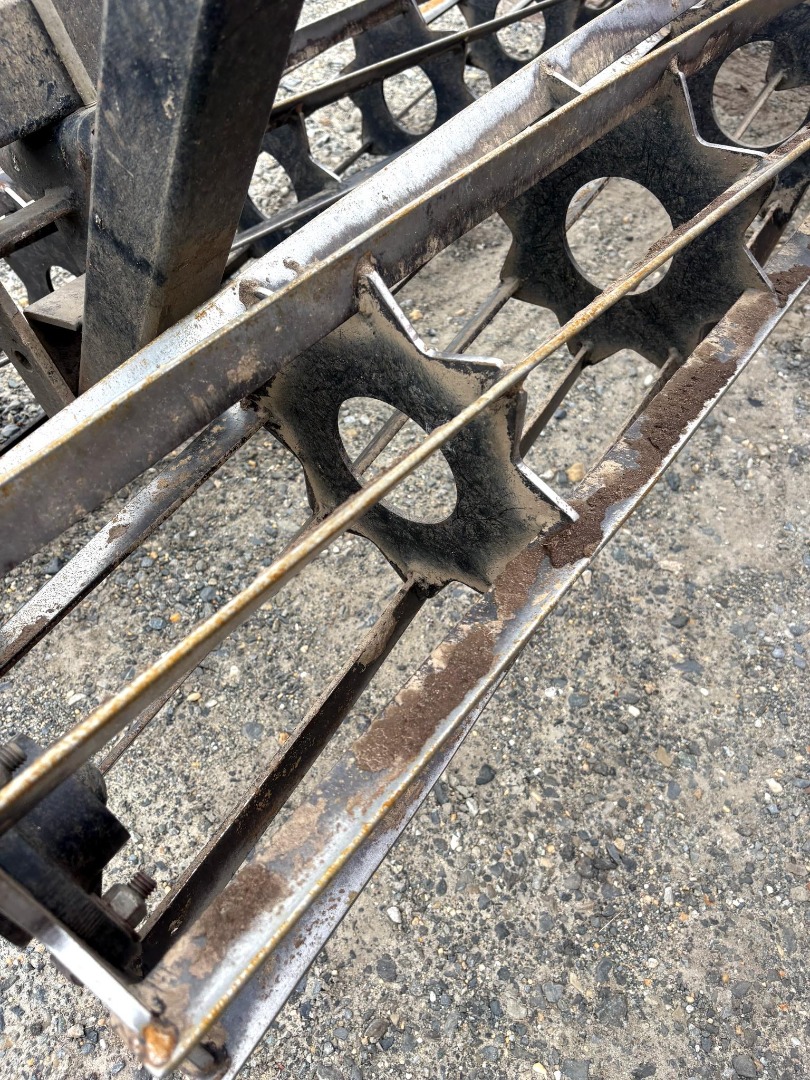

Rolling Basket – Adjustable down pressure with 8 high-carbon flat bars for residue management.
-
3-Bar Spike Tooth Harrow – Follows terrain and adapts to varying soil/residue conditions.
-
Swept Back Reel Design – Increases residue and rock clearance.
-
Articulating Ball Hitch – Reduces fatigue on drawbars; better connection for folding models.
-

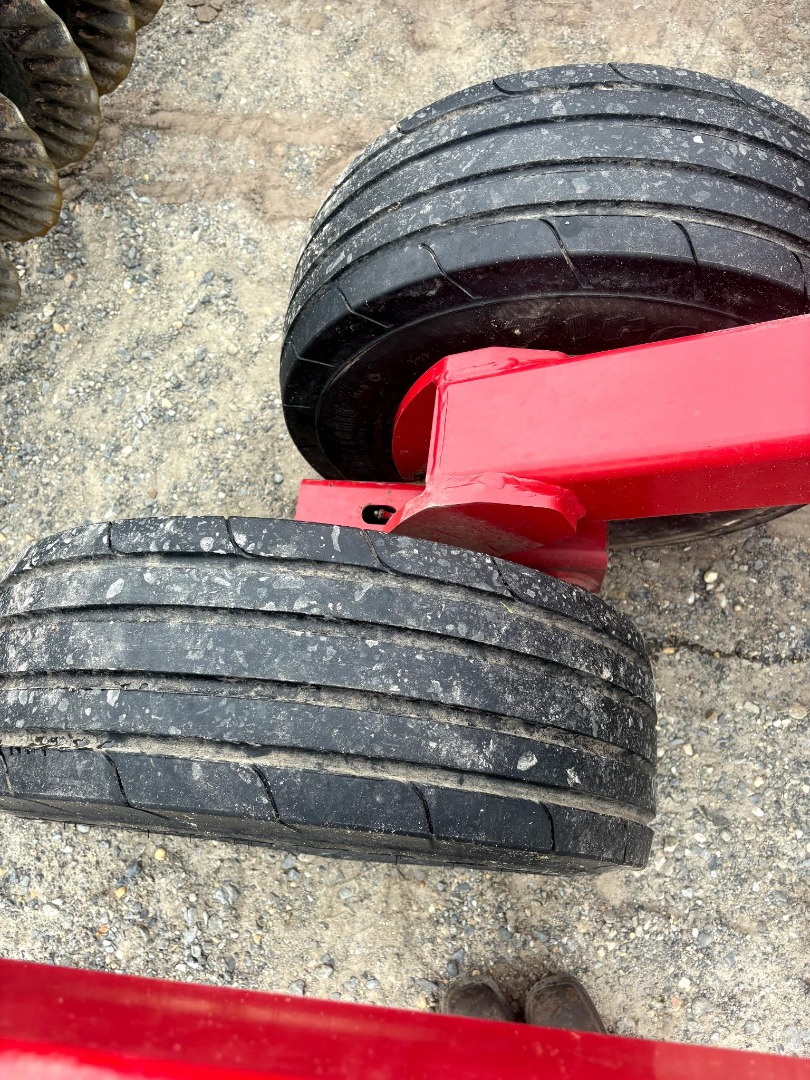

Maintenance-Free Walking Tandem Axle – On both mainframe and wing sections.
-
Spring Cushion Level Lift – Absorbs shock in uneven terrain.
-
Single Point Depth Stop – Simple and quick depth adjustments.
-
GBGI Hubs – Low-maintenance sealed cast hub bearings for added durability.
-
Service-Free Trunnion Bearings – Sealed design with 1¾" round center shaft.
-
UHMW Axle Bearing – 6mm thick, long-wearing composite bearing.
IC5112
-
Cutting Width: 12' 5"
-
Approx. Weight: 10,100 lbs
-
Transport Height: N/A
-
Transport Width: 13' 9"
-
Approx. HP Required: 100–150 HP
-
Acres/hour @ 6–9 mph: 7–11
IC5114
-
Cutting Width: 13' 6"
-
Approx. Weight: 10,700 lbs
-
Transport Height: N/A
-
Transport Width: 14' 10"
-
Approx. HP Required: 120–180 HP
-
Acres/hour @ 6–9 mph: 8–12
IC5120
-
Cutting Width: 20' 5"
-
Approx. Weight: 17,320 lbs
-
Transport Height: 10' 6"
-
Transport Width: 13' 8"
-
Approx. HP Required: 163–245 HP
-
Acres/hour @ 6–9 mph: 15–20
IC5124
-
Cutting Width: 23' 5"
-
Approx. Weight: 18,500 lbs
-
Transport Height: 12' 0"
-
Transport Width: 13' 8"
-
Approx. HP Required: 188–282 HP
-
Acres/hour @ 6–9 mph: 15–22
IC5127
-
Cutting Width: 26' 6"
-
Approx. Weight: 20,920 lbs
-
Transport Height: 11' 5"
-
Transport Width: 15' 7"
-
Approx. HP Required: 212–318 HP
-
Acres/hour @ 6–9 mph: 16–24
IC5132
-
Cutting Width: 32' 1"
-
Approx. Weight: 25,220 lbs
-
Transport Height: 13' 6"
-
Transport Width: 15' 7"
-
Approx. HP Required: 256–384 HP
-
Acres/hour @ 6–9 mph: 19–29
IC5140
-
Cutting Width: 39' 7"
-
Approx. Weight: 30,730 lbs
-
Transport Height: 11' 7"
-
Transport Width: 18' 8"
-
Approx. HP Required: 320–408 HP
-
Acres/hour @ 6–9 mph: 24–36
IC5151
-
Cutting Width: 51' 3"
-
Approx. Weight: 40,500 lbs
-
Transport Height: 14' 8"
-
Transport Width: 19' 2"
-
Approx. HP Required: 408–602 HP
-
Acres/hour @ 6–9 mph: 31–46
