Woods Batwing Rotary Cutter

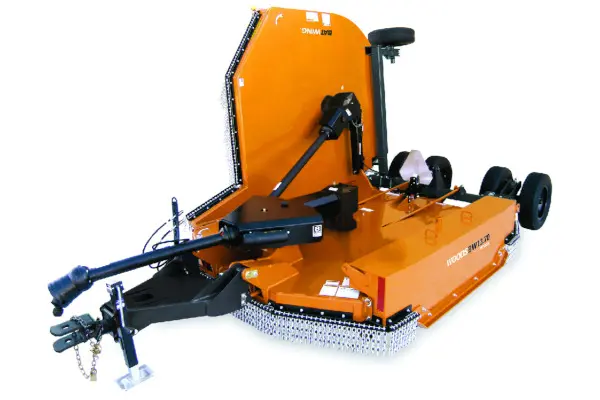

Woods BW10.30 Batwing Cutter
The Woods BW10.30 is a 10-foot Standard Plus flex-wing rotary cutter built for dependable mowing, clean cut quality, and easier service. Designed for tractors from 25 to 60 PTO horsepower, it combines deep cutting decks, high-lift blades, durable gearboxes, and flex-wing terrain following for productive pasture, roadside, and acreage maintenance.
Built For Clean Cutting
- 10-foot cutting width
- Adjustable 2" to 12" cutting height
- 1.5" cutting capacity
- CAT 4 CV main driveline and CAT 3 wing driveline
- 10-year gearbox warranty including parts, labor, and seals
Product Features
A compact Batwing cutter designed for clean mowing, easier hookup, and long-term durability.
#1 Cut Quality Technology
- Uses cutting technology from larger Woods Batwing cutters
- Deep cutting decks support smooth material flow
- High-lift blades help improve finished appearance
EZ-Change Blade System
- Blade changes in five steps with a 3/4" wrench
- No impact gun or torch required
- Large blade access window simplifies service
Flex-Wing Terrain Following
- Wings flex 90 degrees up and 22 degrees down
- Helps follow uneven ground and roadside contours
- Transport width is only 82"
Gearbox Protection
- 160 HP splitter gearbox rating
- 75 HP center and wing gearbox ratings
- Cool-Flow lubrication and Triple Seal protection
Easy Hookup Options
- Optional Easy Connection Kit available
- SmartLift system helps hold the PTO driveline
- Hydraulic hose holder helps keep connections organized
Service-Friendly Design
- Metal thumbscrew dipstick for gearbox oil checks
- Aligned grease points simplify maintenance
- Replaceable skid shoes extend service life
Improvements For Better Mowing
- Cleaner cut quality: deep decks, high-lift blades, and exclusive baffling help leave a more uniform finish.
- Faster blade service: EZ-Change access helps reduce time spent on routine maintenance.
- Better protection: heavy gearbox ratings, tapered roller bearings, and sealed lubrication support durability.
- Easier tractor connection: optional SmartLift and PTO lock collar features help simplify hook-up.
- More terrain flexibility: wing flex helps the cutter follow uneven ground while maintaining effective cutting coverage.
Key Specs
- Model: Woods BW10.30
- Product tier: Standard Plus
- Cutting width: 10 ft.
- Tractor PTO HP: 25-60
- Cutting height: 2" to 12"
- Cutting capacity: 1.5" diameter
- Weight / tongue weight: 2,173 lbs. / 745 lbs.
- Transport width: 82"
Application & Use In The Field
A practical flex-wing cutter for landowners, municipalities, farms, and acreage maintenance crews.
Pasture Maintenance
- Clip pastures and control seasonal grass growth
- Cut light brush and weeds up to 1.5" diameter
- Maintain cleaner grazing areas and field edges
Roadside & Ditch Mowing
- Use wing flex to follow ditches and uneven shoulders
- Maintain access roads, lanes, and right-of-way areas
- Fold to a narrow transport width between jobs
Acreage Cleanup
- Cut tall grass, weeds, and light overgrowth
- Restore unmanaged areas around barns and lots
- Keep property edges and open areas under control
Farm & Municipal Work
- Maintain field lanes, utility areas, and public grounds
- Pair with mid-size tractors from 25 to 60 PTO HP
- Support repeated seasonal mowing schedules
Compact Batwing Coverage With Woods Cut Quality
The Woods BW10.30 gives operators a durable 10-foot flex-wing cutter with clean cut performance, easier maintenance, and trusted gearbox protection for everyday field and property upkeep.
