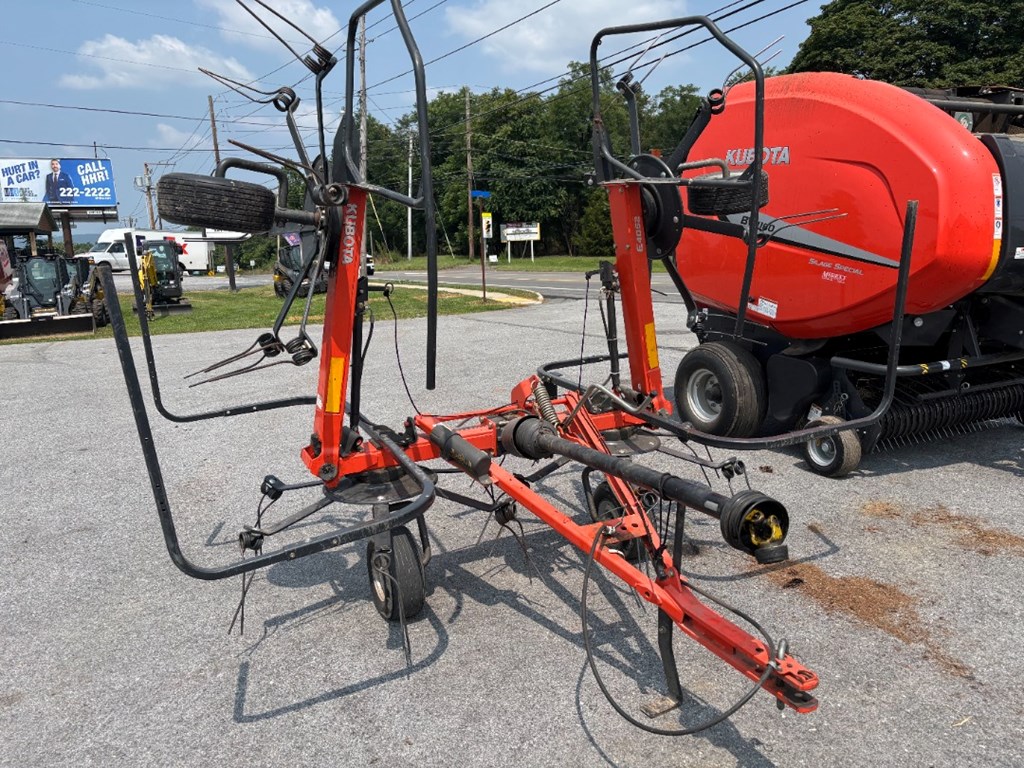

Used KUBOTA TE4052T

Tedder Features:

1. Super-C Tines for Efficient Crop Handling: Equipped with symmetric springs, Kubota tedders efficiently pick up and turn crops. These equally sized tines distribute the crop load evenly, prolonging their lifespan.
2. Robust Tine Arms: Made from flat steel, the tine arms create a strong bond with the rotor plate, enhancing durability and load resistance.
3. Adjustable Pick-up Angle: The Super-C tines offer three locking positions, allowing you to adjust the pick-up angle to match different crop conditions, from heavy silages to fragile crops.
4. Durable and Flexible Tines: Kubota's tines are made from 0.39" shot-peened spring steel with a 3.15" coil diameter, ensuring exceptional durability and flexibility.
5. Sturdy Chassis: All Kubota tedders feature a rugged CNC bend box chassis with only one welding seam for maximum rigidity.
6. Height Adjustment for Optimal Spreading: A simple three-way wheel height adjustment allows you to achieve the perfect spreading angle according to crop conditions.
7. Automatic Tine Leveling: The tines automatically level for added ground clearance when folding into the transport position.
8. Easy Attachment: These pull-type drawbars are easy to attach to your tractor.
9. Smooth Power Transfer: Double U joints facilitate a smooth transfer of power from the tractor to the rotors.

TE4052T - Strong and Easy to Maintain:

• FarmLine Kubota tedders feature oil-immersed cam discs, guide rollers, and tine bearings, reducing maintenance needs.
• The TE4052T boasts a maintenance-friendly gearbox with just one grease fitting. It's directly mounted to the frame for full support.
• Super-C tines are made from 0.35" shot-peened spring steel, providing strength and extended service life.
• The one-piece metal box chassis, with only one welded seam, offers exceptional strength.
• Four rotors with wide overlap ensure complete hay pick-up and even distribution.
• The low-maintenance gearbox has only one grease point, and sturdy bearings maximize driveline longevity.
• This model's compact size and 19.7" rotor plate diameter make it ideal for small tractors and hilly terrain.

TE6576CD - High Performance with Low Input:

• ProLine Kubota tedders feature an oil-immersed pinion and crown wheel drive system, eliminating the need for maintenance.
• The TE6576CD is designed for low horsepower tractors, offering a high working width, low horsepower requirements, and efficient transport.
• Hydraulic border tedding comes standard, distributing weight onto the running gear during transport.
• An optimized oil-immersed driveline suits low horsepower tractors, saving fuel and running costs.
• Hydraulic transport wheel folding enhances balance and stability. Automatic folding reduces operator errors.
• A third wheel improves tracking and tedding accuracy while adjusting tedding height.
• The transport frame rests on the center part of the machine and the tractor drawbar in transport position.
• Wide-track transport wheels ensure stability during road transport, even at high speeds.
